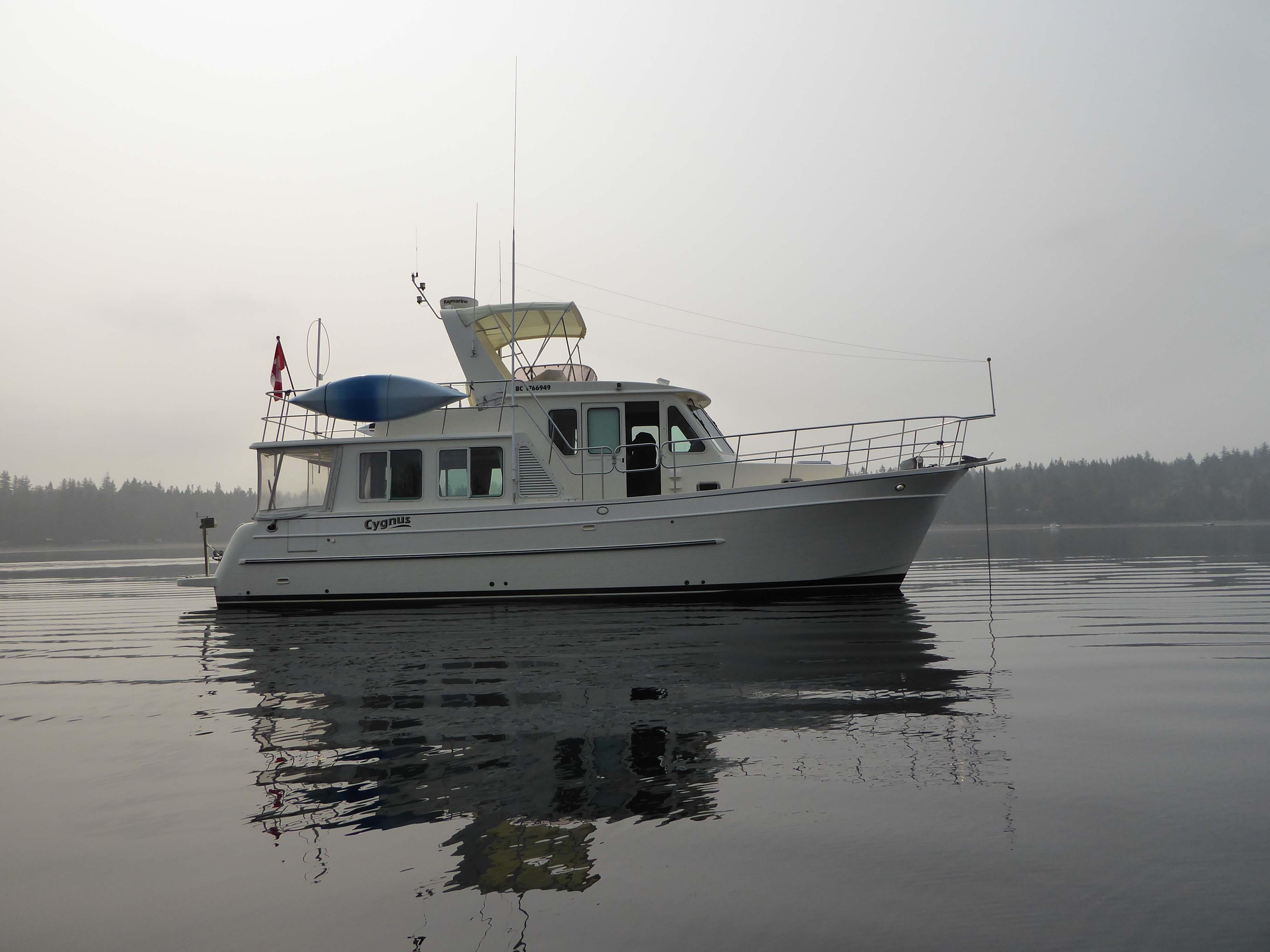

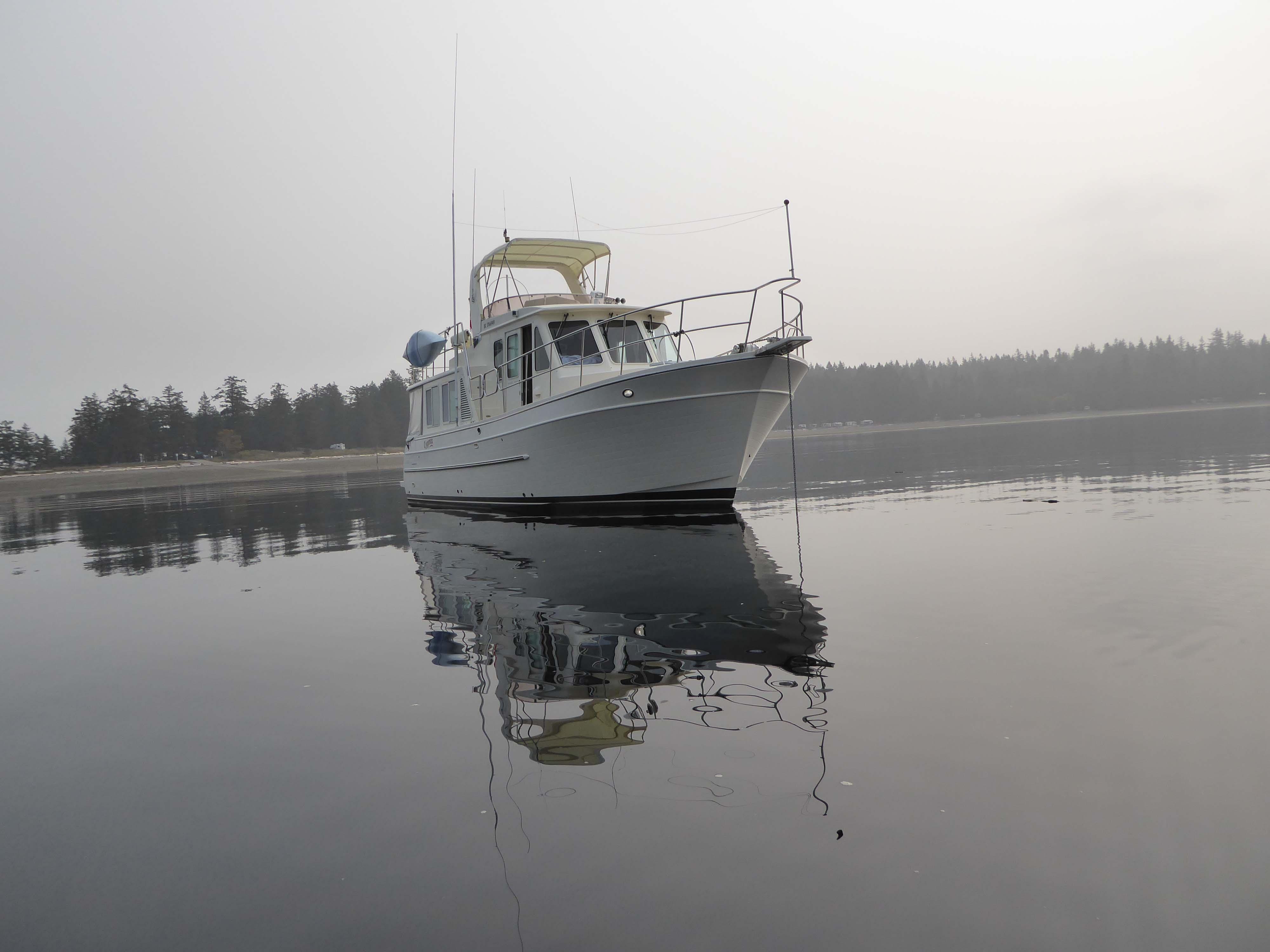

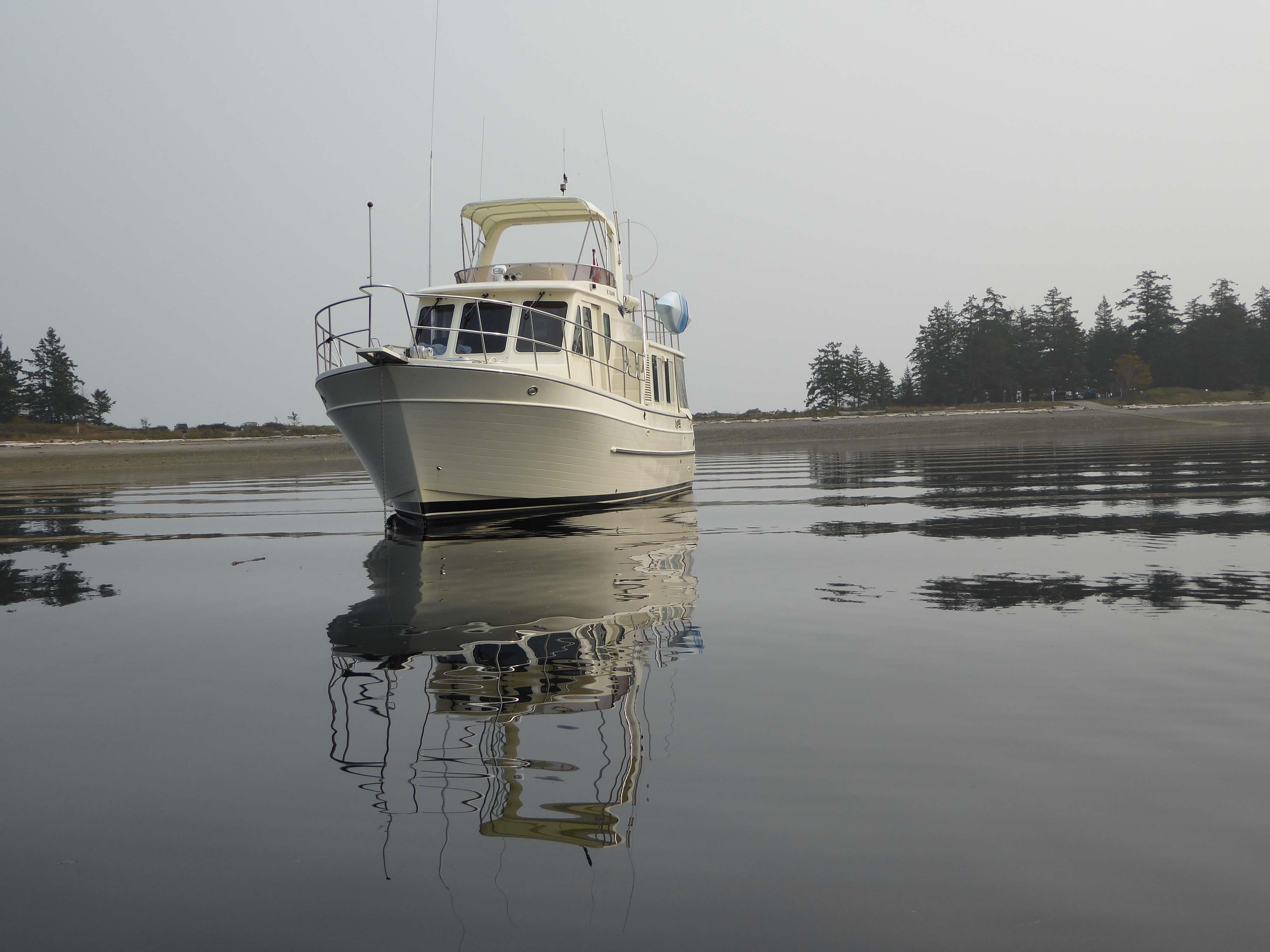

2009 39 ft North Pacific 39 Pilothouse | Sidney ,BC

  • Price $ 308,126
  • Boat Name Cygnus
  • MAKE / Model North Pacific
  • Builder North Pacific Yachts Inc.
  • Construction Fiberglass
  • Length 39 ft
  • Beam 12.58 ft
  • Draft 4 ft
  • Cabins 1
  • Engine(s) Cummins, diesel

Description

Excellent Condition! All maintenance up-to-date. Well equipped and well designed for cruising the PNW!

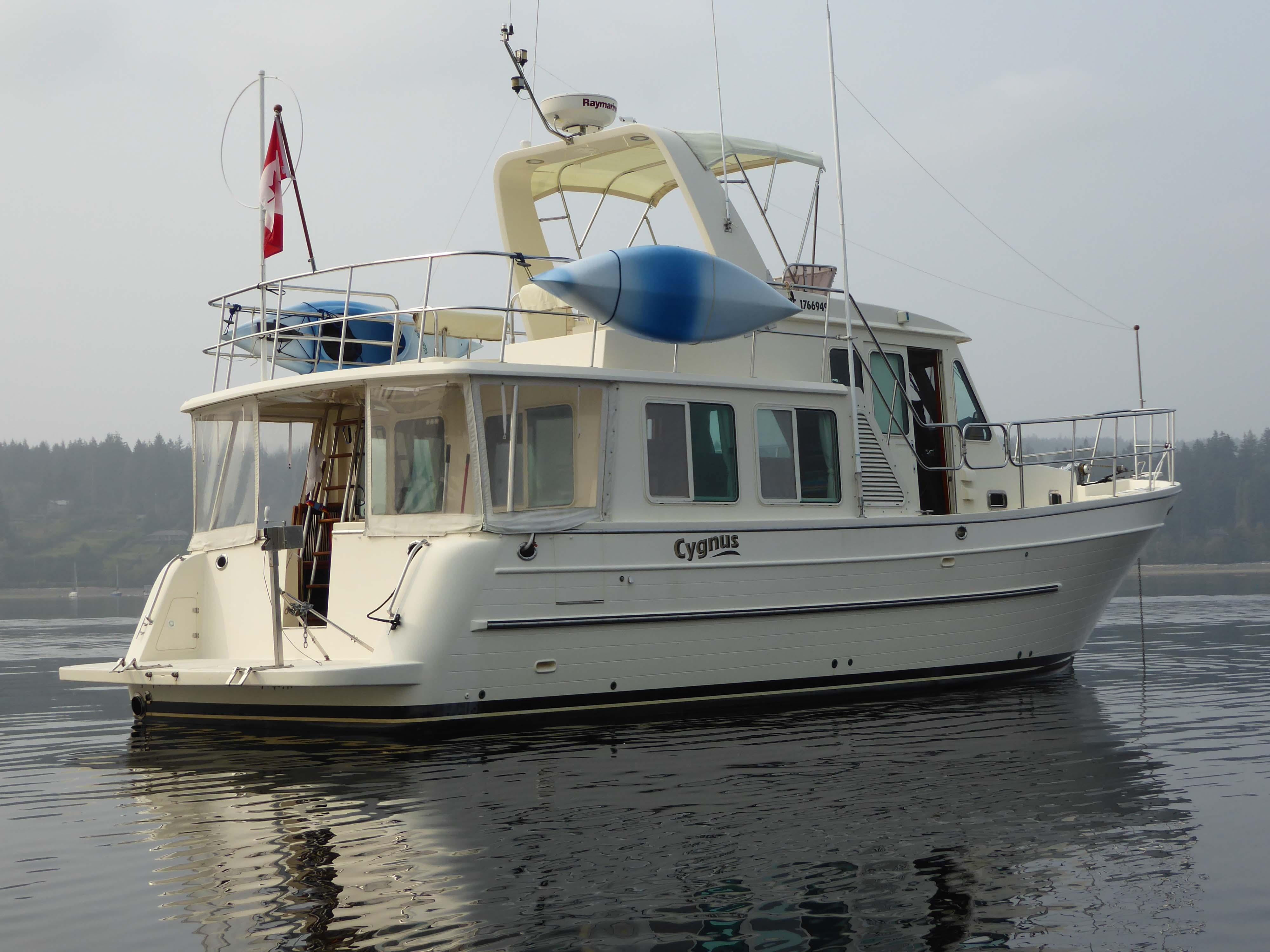

Cygnus is being offered for sale by her original owners who have lovingly maintained her. The NP39 is a proven cruiser, designed to be comfortable and easy to handle for a couple with occasional guests.

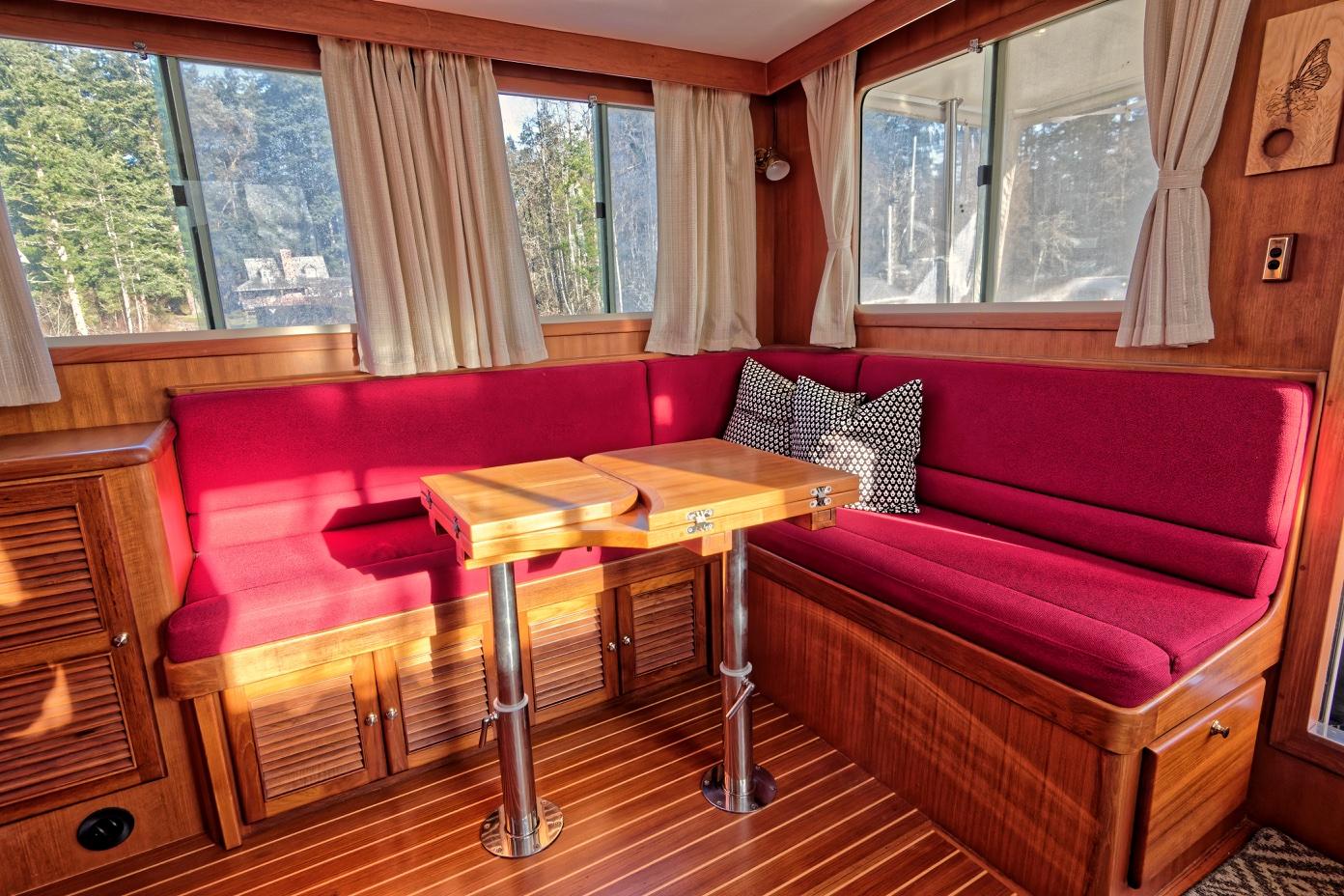

The NP39 has a spacious, full beam salon. There is an open ceiling from the salon to the pilothouse which gives the space light from windows 360 degrees and excellent visibility. The L settee is comfortable for 4 for dinner and converts into a double bed. The full cockpit enclosure on Cygnus add a substantial amount of living space to the salon.

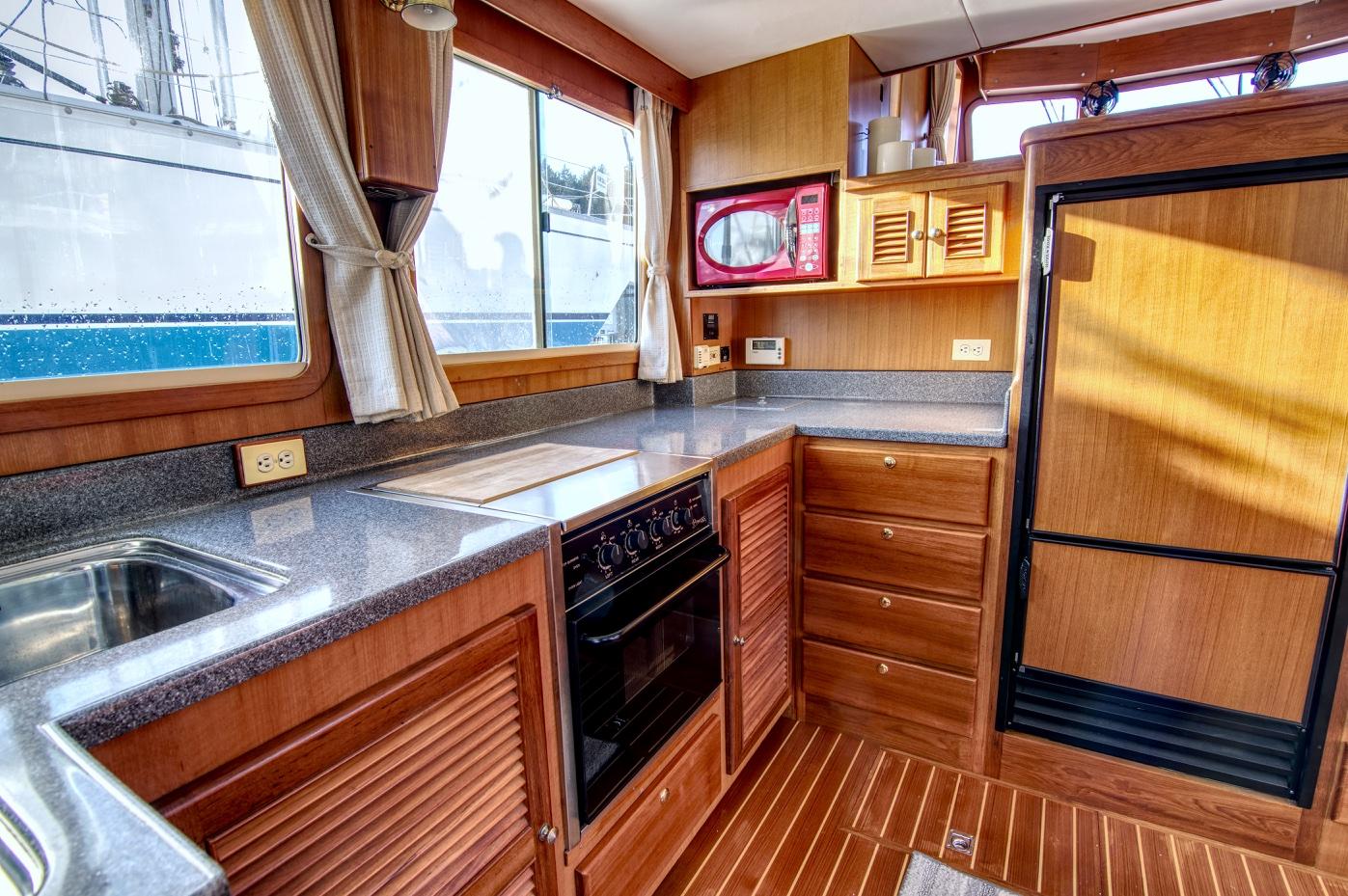

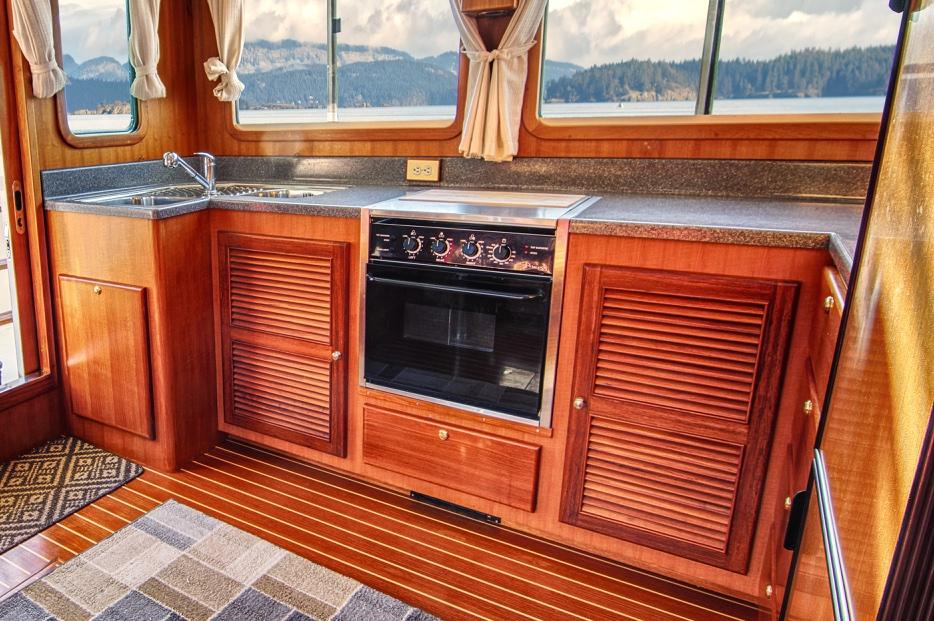

The galley on the NP39 rivals that on boats that are 60' long. There is a huge amount of counter space, lots of drawers and cabinetry. A three burner cooktop with oven is great for cooking and double sinks make cleanup easy. The 9 cu.ft Novakool is the largest marine unit available. Under the floor is additional storage.

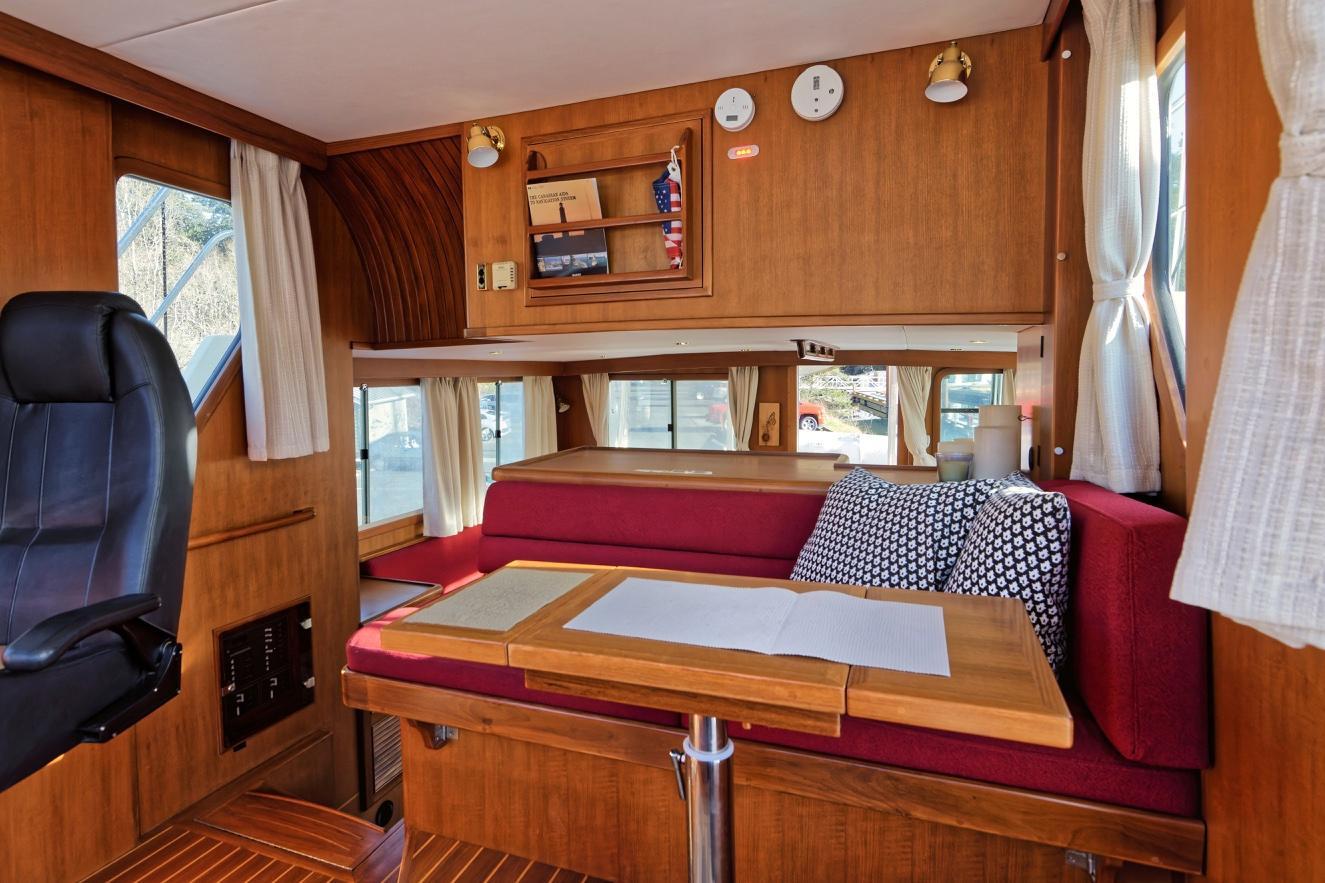

With a comfortable helm seat and a long bench seat, the pilothouse offers the captain and crew comfort and nearly unobstructed visibility in all directions. Doors on both sides provide ventilation and access while maneuvering. The settee converts into a single bed.

The head is comfortable with a large separate shower stall.

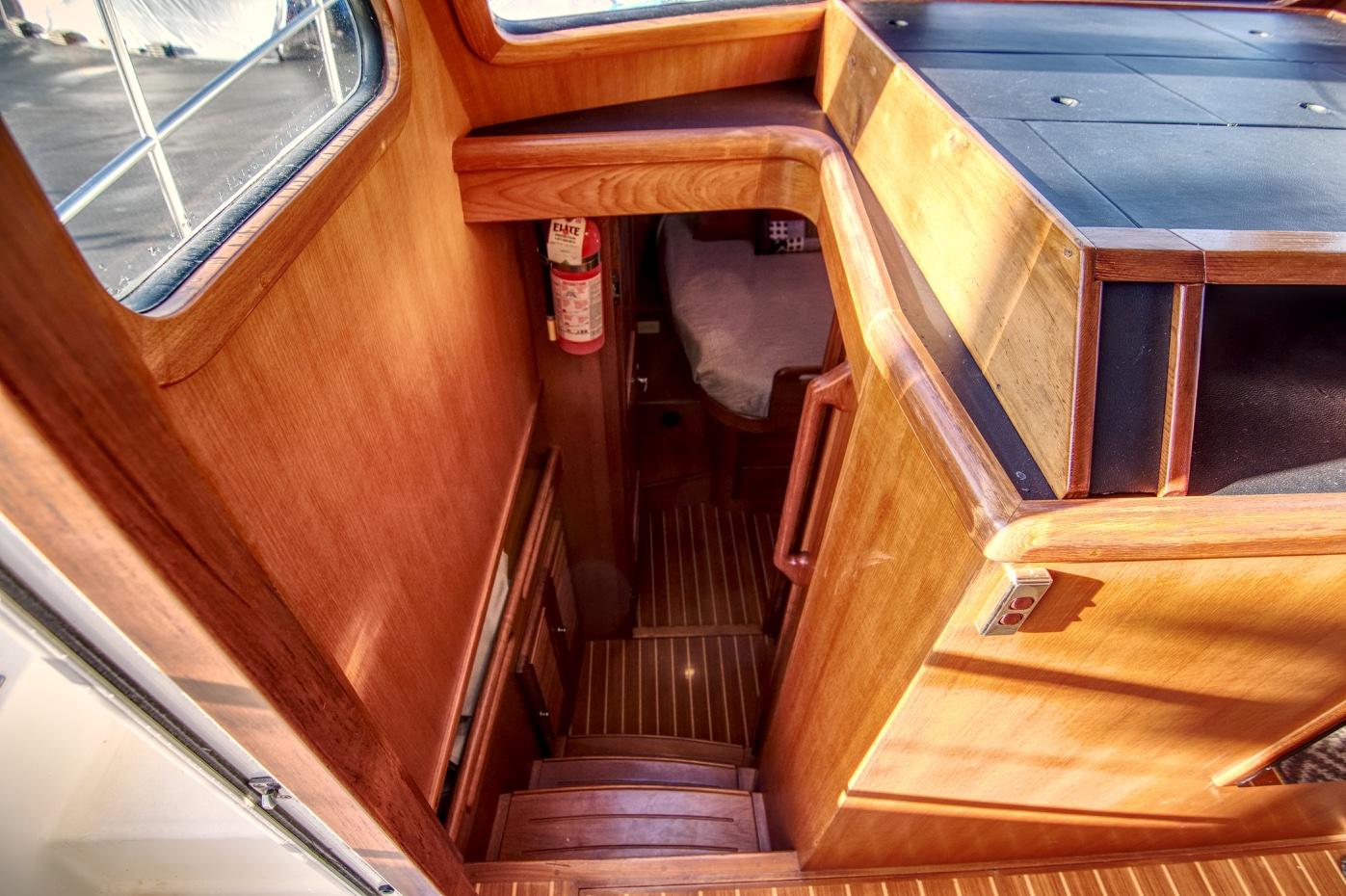

The master stateroom has an island bed, two hanging lockers and four drawers.

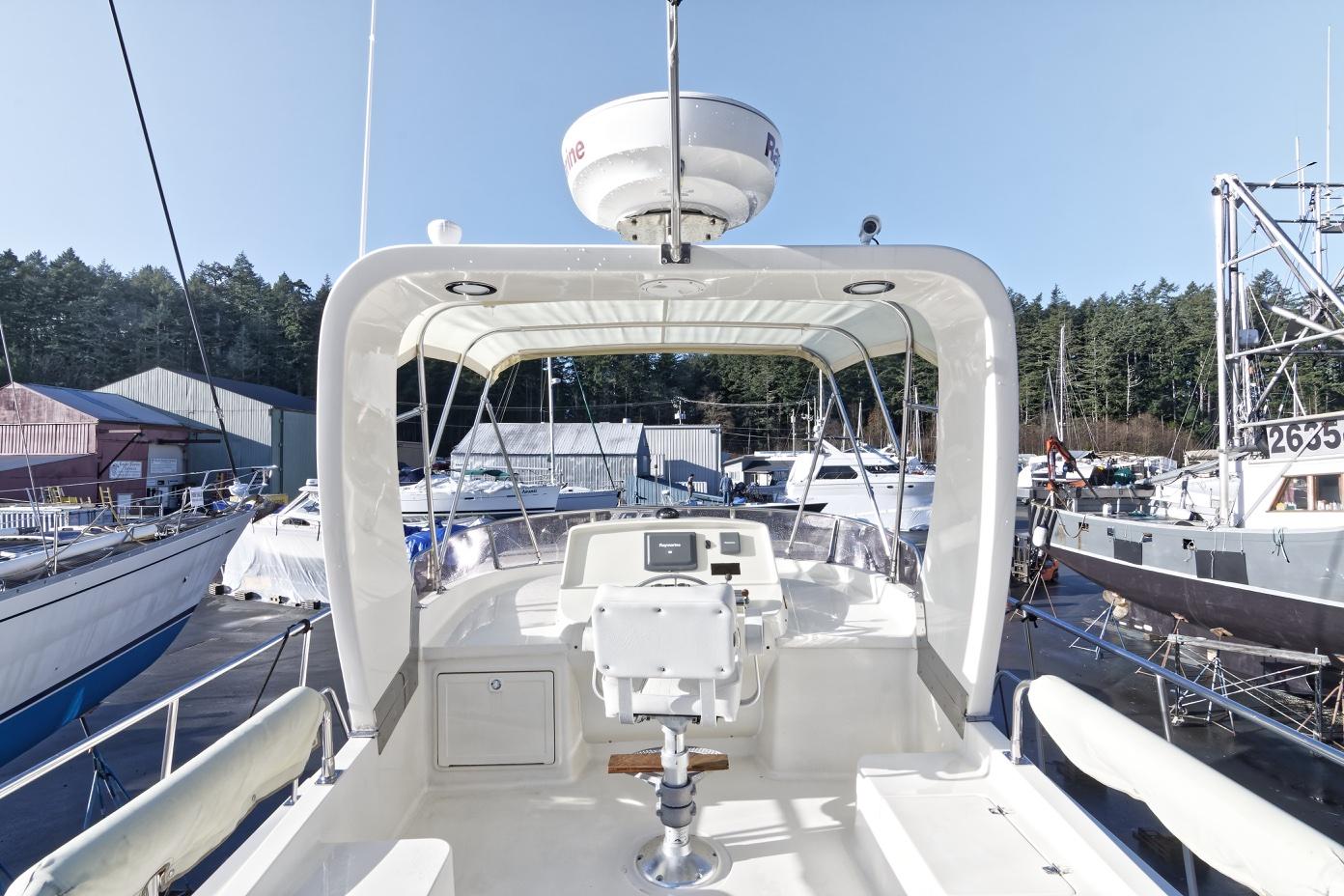

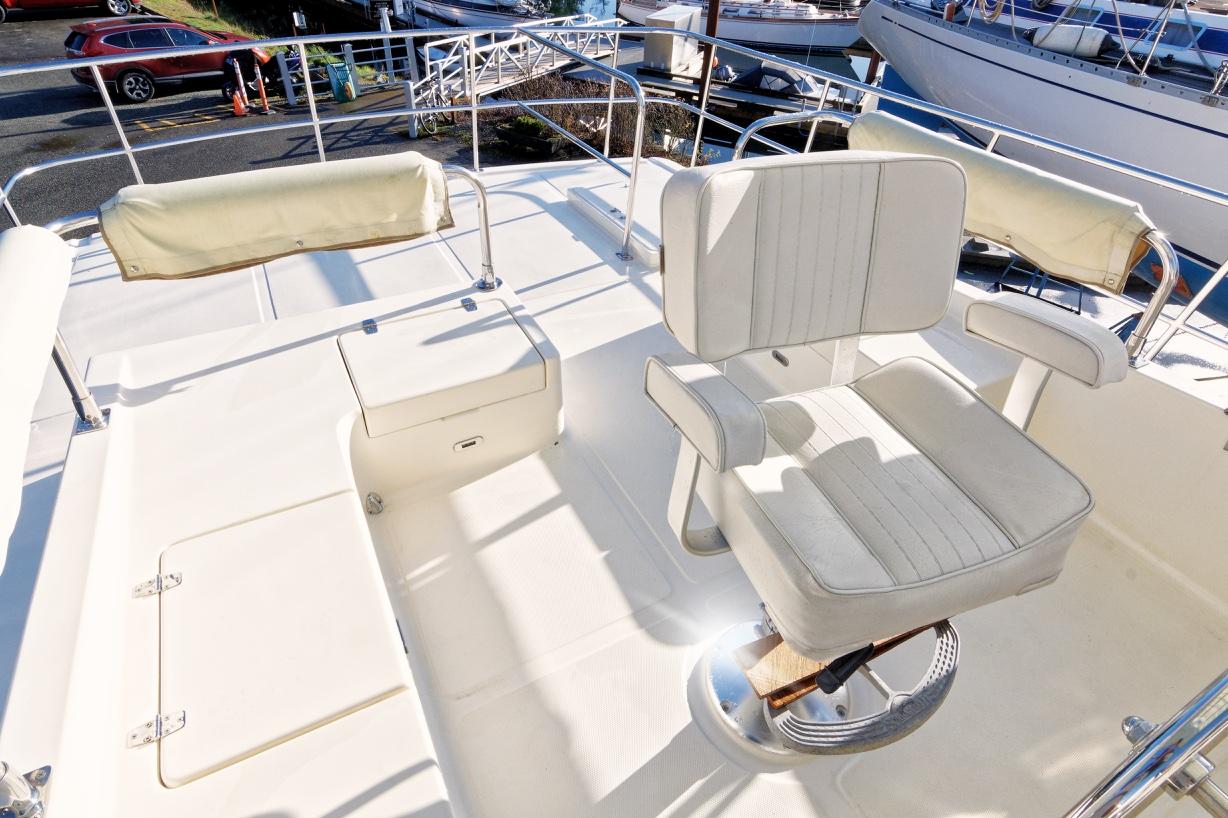

All NPs come standard with a flybridge and Cygnus is no exception. The flybridge is spacious and great for cruising and entertaining.

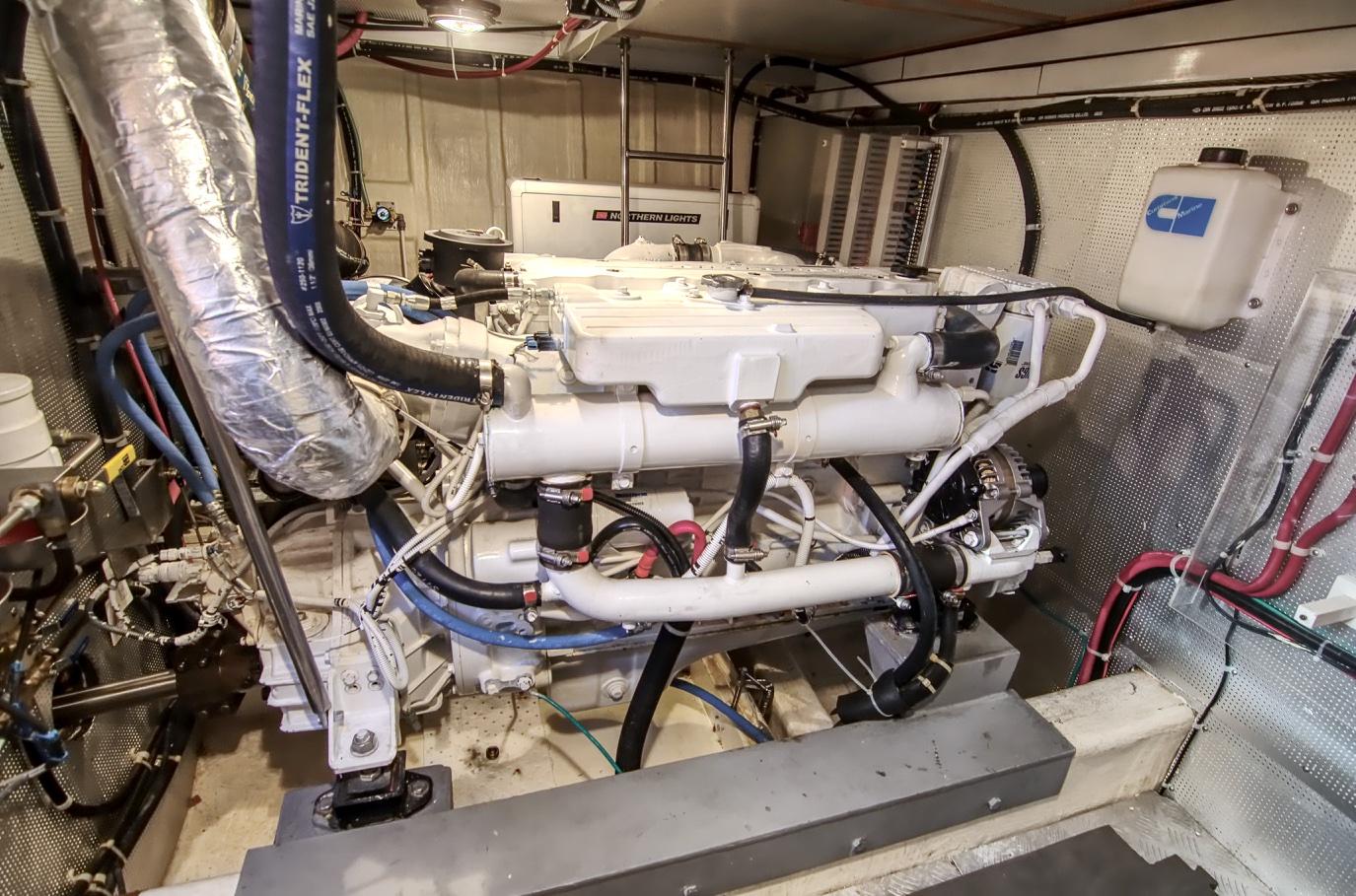

Cygnus has a Cummins 230 5.9L QSB with about 2700 hours. All maintenance is up to date on the engine. The Cummins 230 has proven to be a reliable engine and provides comfortable cruise speeds of 7-9 knots. Top speed is about 10 knots. At 7 knots the NP39 burns 2-2.5 GPH.

Some Key Equipment on Cygnus:

Cummins 230 QSB 5.9 L engine with 2700 hours
6Kw Northern Lights generator
Magnum MS2812 inverter/charger and battery monitor
Bow thruster
Hurricane II hydronic heat
Seawise davit and dinghy
Dual station spot light
Bimini frame with canvas
Full cockpit enclosure
Nice Raymarine system and much more!
See full spec section




  • Key Layout Features

    Salon/Galley


    Full beam with large L settee - convertible double bed
    Folding table - accommodate 4 for dinner
    Large galley counter with lots of storage
    Large double stainless steel galley sinks

    Pilothouse

    Bean seat with table
    Helm seat
    Two doors
    360 degree visibility

    Head

    Tecma Silence Plus toilet
    Sink, counter, storage cabinet and mirror
    Large separate shower stall

    Master Stateroom

    Large island bed with access up both sides
    4 drawers
    2 hanging lockers
    2 bookshelves
    2 screened portholes and one screed hatch

    Flybridge

    L settee
    Bench seat
    Helm seat
    Open space for furniture

    Cockpit

    Fully enclosed which adds a lot of living space to the NP39



  • Key Equipment

    Cummins 230 QSB 5.9 L engine with 2700 hours
    6Kw Northern Lights generator
    Magnum MS2812 inverter/charger and battery monitor
    Bow thruster
    Hurricane II hydronic heat
    Seawise davit and dinghy
    Nice Raymarine system and much more!
    See full spec section
    Spot light with dual station controls
    Bimini with canvas
    Cockpit enclosure
    Raymarine electronics - see below for details
    Much more listed below:

  • Full Specs and Layout



    Construction:

    Hull and superstructure are hand laid-up, molded fiberglass. The hull is solid fiberglass. A vinylester resin is used in the outer layers. There is some extra support built into the hull between the WL and rubstrake every 12.”

    Molded FRP grid bonded throughout the hull bottom.

    Solid Keel with fiberglass stringers

    The deck and superstructure is a single FRP mold with structural coring (Nida coring on the decks - marine plywood elsewhere) as required.

    FRP bow platform

    Non-skid fiberglass decks

    Fully integrated swimming platform

    International paints micron CSC anti-fouling

    International paints epoxy barrier coating below water line

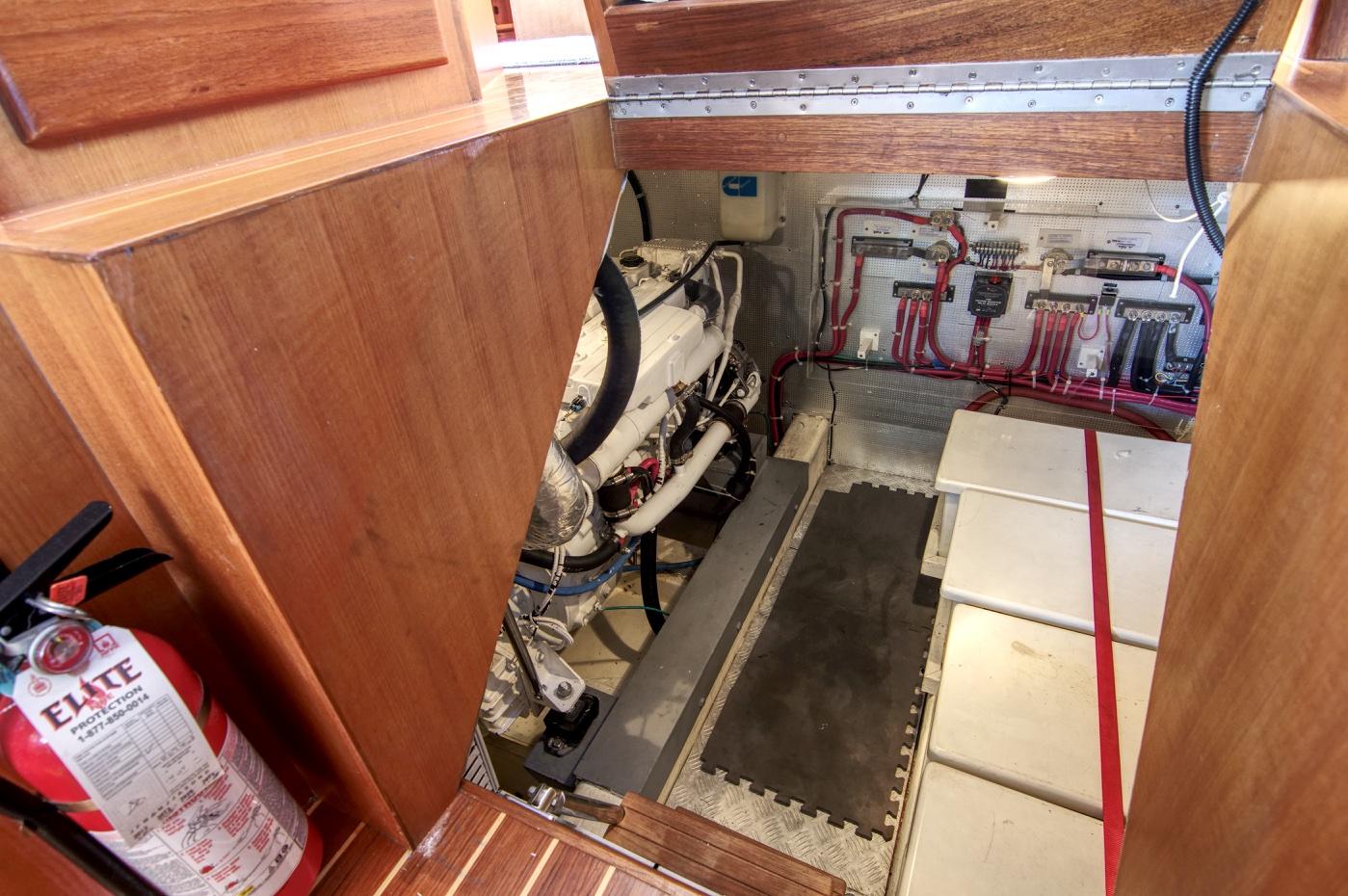

    Engine Room, Propulsion, Heat and Fresh Water System:

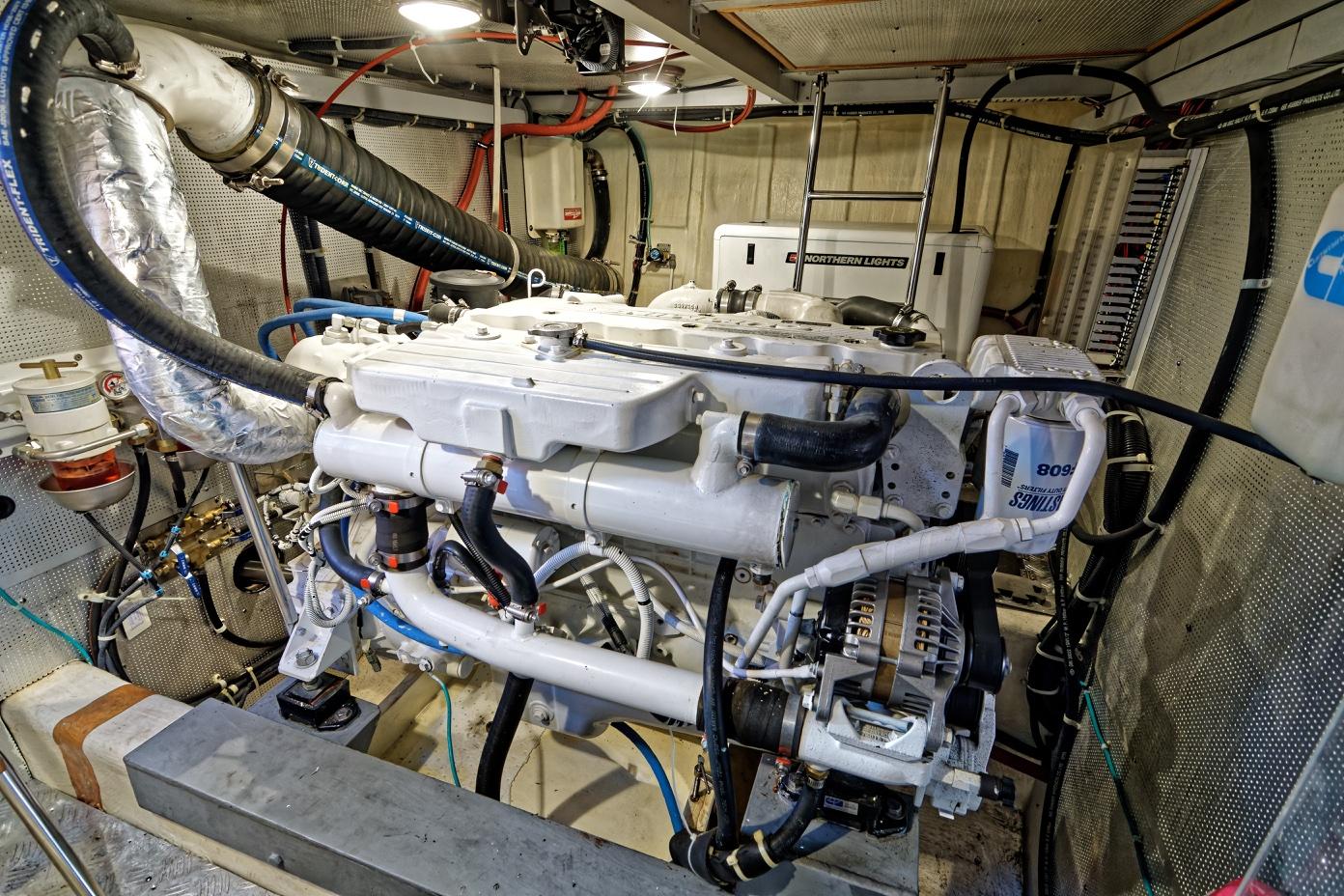

    Cummins 230 Hp QSB engine with 160 amp alternator with 2712 hours
    Engine room sound insulation
    Diamond plate aluminum floors
    Engine room light (4)
    Engine room blower
    FRP fuel tanks (2 X 180 GAL)
    Stainless steel shaft
    Tides Marine dripless shaft seal
    Precision 4 blade bronze propeller (Hung Shen)
    Hynautic dual station hydraulic steering
    Morse cable dual station engine controls
    Exhaust muffler
    Sea cock and strainer on engine raw water intake
    Dual Racor for engine, 1 single for genset)
    Automatic bilge pump (3) plus one manual pump
    Holding tank (40 GAL) with macerator pump
    FRP water tank (1 X 200 GAL) fresh water pump fresh water outlet
    11 gallon water heater

    Electrical:

    Gen-set package w/ Northern Lights 6Kw gen-set, 110/220V, w/ sound shield, water/gas separator and muffler with 620 hours
    Magnum MS2812 inverter/charger
    Rolls golf cart batteries - replaced 2017 - 660 amp hour house bank
    Xantrex battery monitor

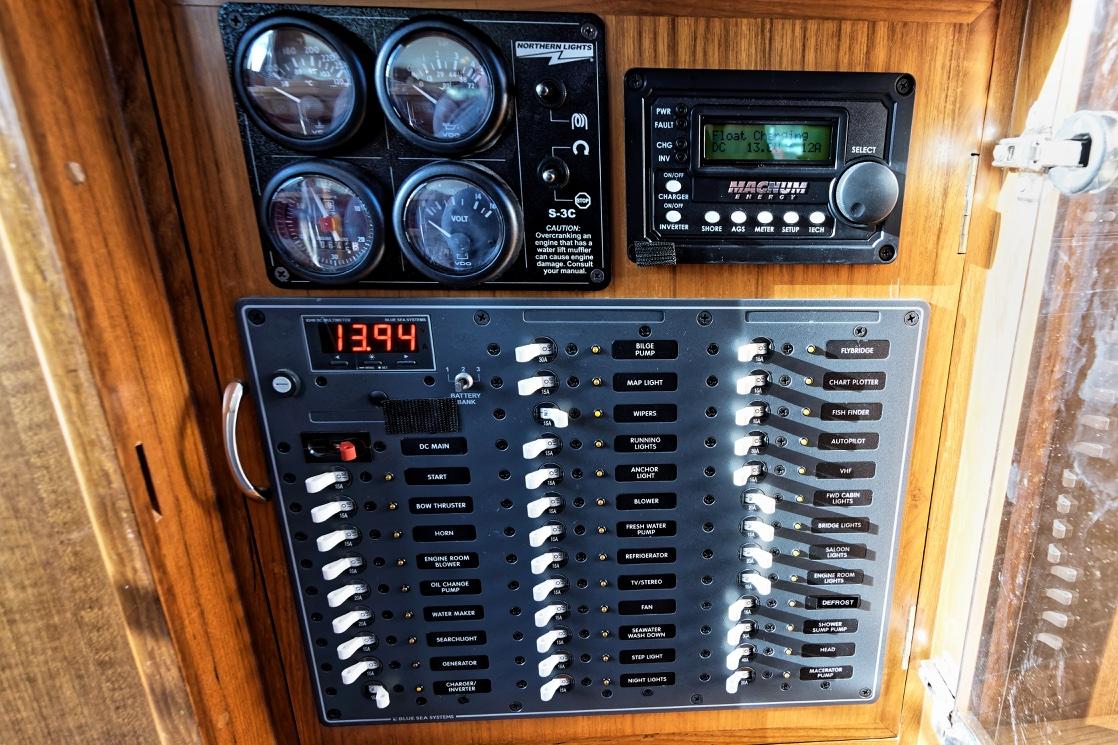

    Master control panel (AC/DC circuit breakers)
    Bonded electrical system
    Colour coded electrical system 120V AC outlets (12)
    Lighting 12V throughout interior and exterior
    Shore power connector - 30amp
    Galvanic isolator

    Interior:    Teak and holly flooring throughout Poly urethane teak paneling and cabinetry throughout - 7 - 9 coats
    Louvered doors for all lockers
    Dovetailed drawers with full extension slides and push button latches
    Curtains on all windows
    Screens on all sliding windows
    Laminated safety glass on sliding windows
    Soft vinyl headliners
    Hurricane II hydronic heat system, 4 zones and domestic hot water heat

    Salon and Galley:

    LED lights (5)
    A/C outlet (5)
    Corian equivalent countertop
    Double SS sink
    One handle faucet with pullout spout
    Seaward Electric stove model 3342 - 3 burner w/ oven
    NovaKool RFU 9000 refrigerator/freezer
    Cabinets and drawers
    L shaped settee on stb side - convertible double bed
    Folding teak table

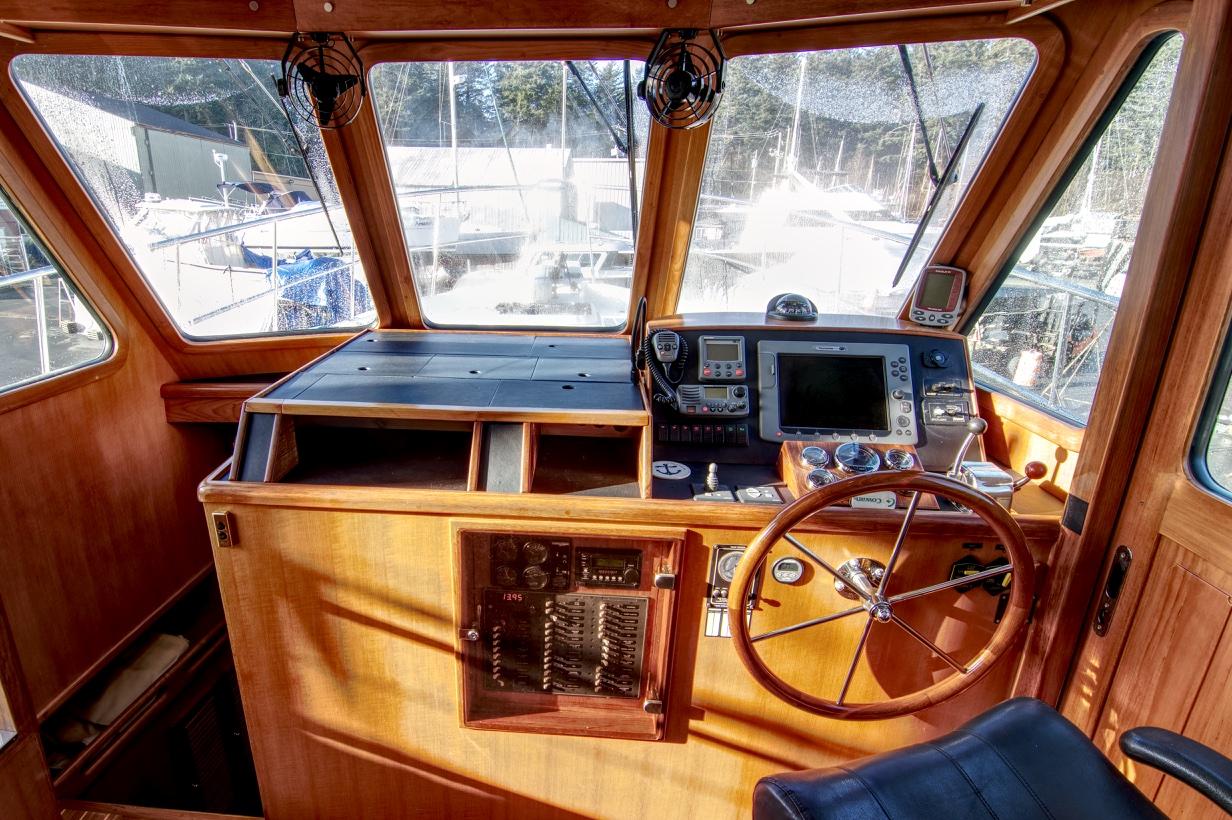

    Pilothouse:

    LED lights (4)
    A/C outlet (2)
    D/C outlet (1)
    FRP locking, sliding door (2)
    AC & DC electrical panels
    Helm seat
    Morse dual lever cable engine controls
    Windlass control
    Bow  thruster control
    Engine gauges -  placed on a raised wedge for better visibility
    Tank tender for fuel and water
    Horn control
    Teak steering wheel
    Bench seat - convertible single bed 5” thick fabric covered foam cushion for bench seat Folding table
    Reading light above bench seat (1)
    Storage cabinet and drawers
    Windshield wiper (3)
    Windshield washer  (3)
    Chart cabinet

    Head:

    LED light (2)
    A/C outlet (1)
    Tecma toilet w/ tank watch
    Mirror
    Stainless steel sink
    Shower door
    Shower control and nozzle
    Shower stall light (1)
    Corian equivalent countertop FRP seat
    Opening, screened porthole window (1)
    Porthole (1)

    Master Stateroom:

    LED light (2)
    A/C outlet (2)
    Large island bed 5” thick fabric covered foam mattress
    Reading light (2)
    Drawer under bed (2 large, full width)
    Hanging locker (2)
    Opening, screened porthole window (2)
    Opening, tinted, screened hatch
    Railing about 12" high at the foot of the bed

    Exterior Fittings and Equipment:

    No teak - except teak steps on ladder in cockpit
    Stainless steel railing and stanchions around all edges
    FRP no-skid deck on all deck surfaces
    SS mooring cleats
    SS fuel, water and waste tank deck fittings
    SS portholes
    Tempered glass windows

    Cockpit: Enclosed with canvas

    Light (1)
    A/C outlet (1)
    Hatch to access lazarette
    Stainless steel ladder leading to fly bridge
    Transom door leading to swim grid
    Bulwark door on starboard side
    FRP door to access salon
    Locker on transom with shore power connector (1) - 30 amp
    Swim ladder
    Fresh water hot/cold shower & washdown connect (sea/fresh)
    Pre-wire and pre-plumb for watermaker in lazarette
    Seawise manual davit system  9' RIB with 9.9hp outboard

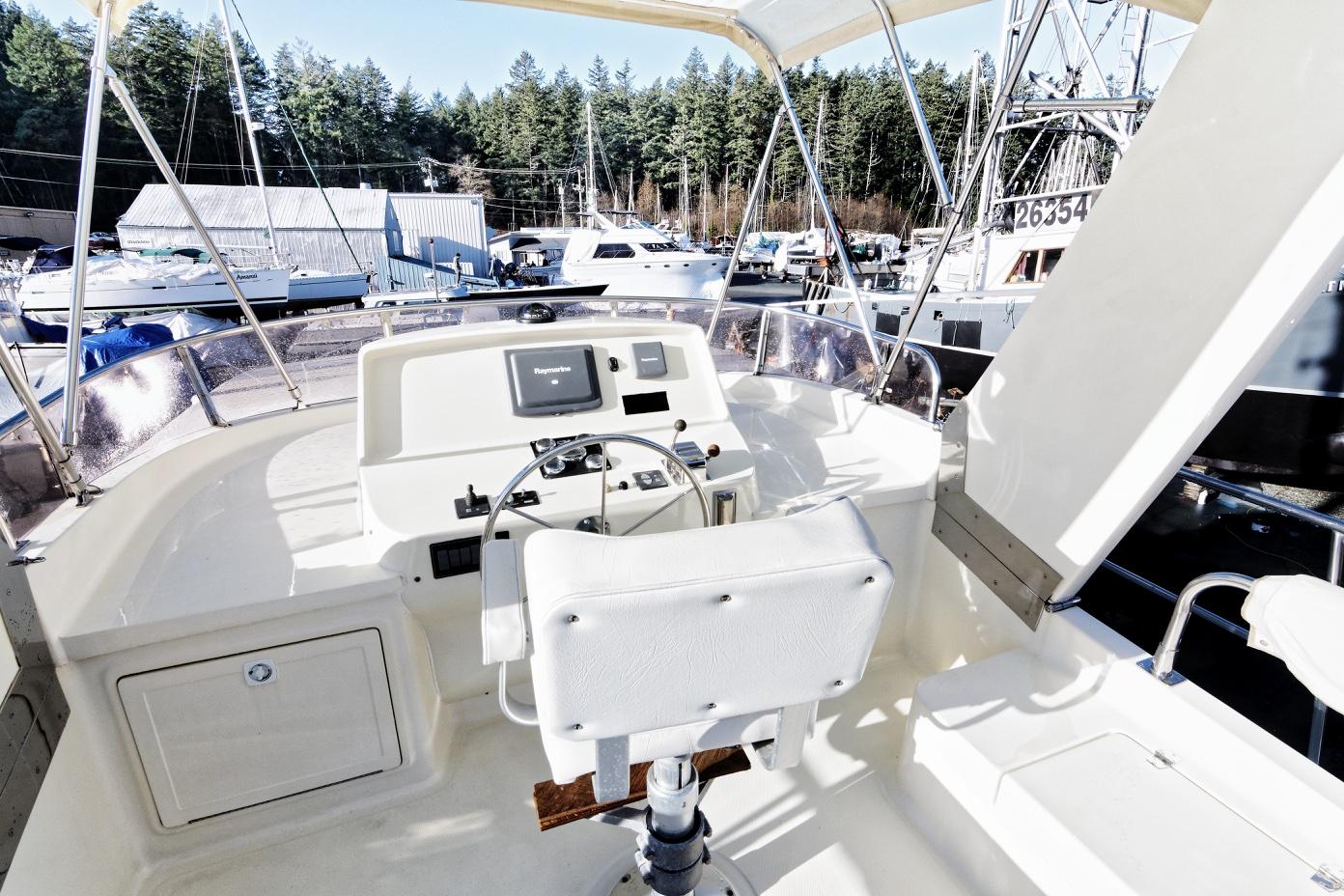

    Flybridge:

    Helm seat
    Stainless steel steering wheel
    Engine gauges
    Morse dual lever cable engine controls
    Windlass control
    Bow thruster control
    Storage locker/seat (2)
    Radar arch - folding Arch light (2)
    D/C outlet (1)
    LED anchor light
    Navigation lights
    Stainless steel flag base
    Electric horn
    Bimini frame and canvas
    Instrument and seat covers like 3901

    Forward Walkaround

    Courtesy lights
    Sea/Fresh water washdown system
    Vetus Alexander III windlass
    SS anchor roller with self launching device
    280 ft of galvanized chain 45 lbs CQR style anchor
    Cleat behind windlass on vertical surface

    Other Equipment:

    Vetus 75kgf 12V bow thruster
    Emergency tiller Zincs (4)
    Spot light with controls at both stations

    Raymarine System:

    Pilothouse:

    E120 (12”) Multifunction screen

    ST6002 Autopilot control screen

    Ray 55

    Flybridge:

    E80 (8”) Multifunction screen

    ST6002 Autopilot control screen


    Other:

    24” 4KW raydome

    Raystar 125 GPS antenna

    S3G corepack (autopilot)

    Type 2 hydraulic pump (autopilot)

    1 – DSM 30 fishfinder module

    1 – B744V 600W bronze thru-hull transducer

    2 – 8’ VHF antennas

    Aft looking camera (mirror image)

    Smart controller

Basic Boat Info

  • Price: $ 308,126
  • Boat Name: Cygnus
  • Make: North Pacific
  • Model: 39 Pilothouse
  • Year: 2009
  • Condition: Used
  • Category: Power
  • Construction: Fiberglass
  • Boat Hull Id: YDO39007I809
  • Has Hull Id: 1

Dimensions

  • Length: 39 ft
  • Length Over All: 42.5 ft
  • Waterline Length: 35.08 ft
  • Beam: 12.58 ft
  • Max Draft: 4 ft
  • Dry Weight: 24,000 lb
  • Cabins Count: 1

Engines

  • Make: Cummins
  • Model: 230QSB
  • Drive Type:
  • Fuel: diesel
  • Engine Power: 230|horsepower
  • Type: Inboard
  • Engine Hours: 2712

Tanks

  • Fuel Tanks: 2
  • Fuel Tank Capacity: 180|gallon
  • Fuel Tank Material: GRP
  • Water Tanks: 1
  • Water Tank Capacity: GRP
  • Holding Tank Count: 1
  • Holding Tank Material: GRP

Other

  • Heads Count: 1
  • Drive Type: Direct
  • Boat Class: Trawlers,Pilothouse,Flybridge
