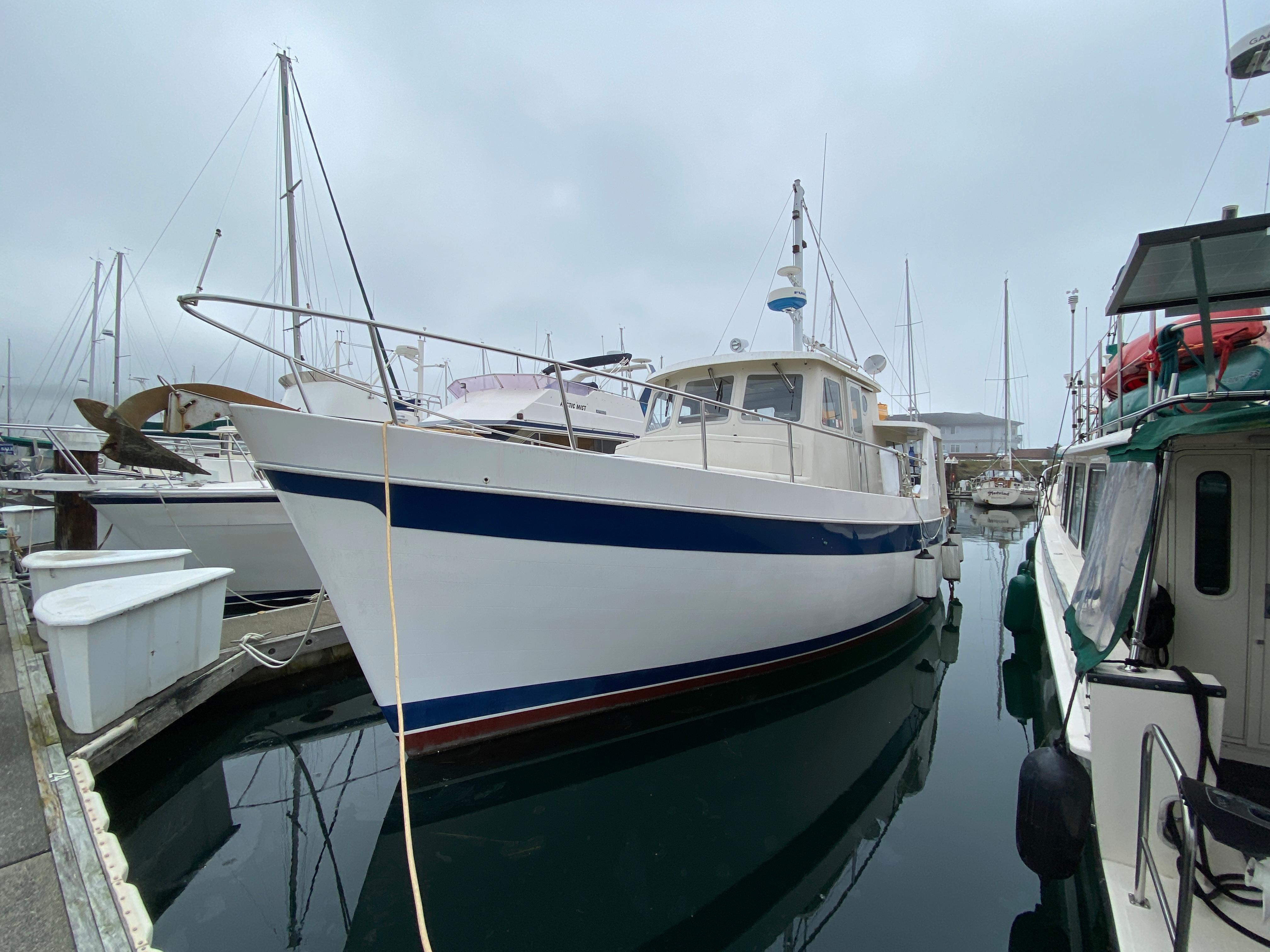

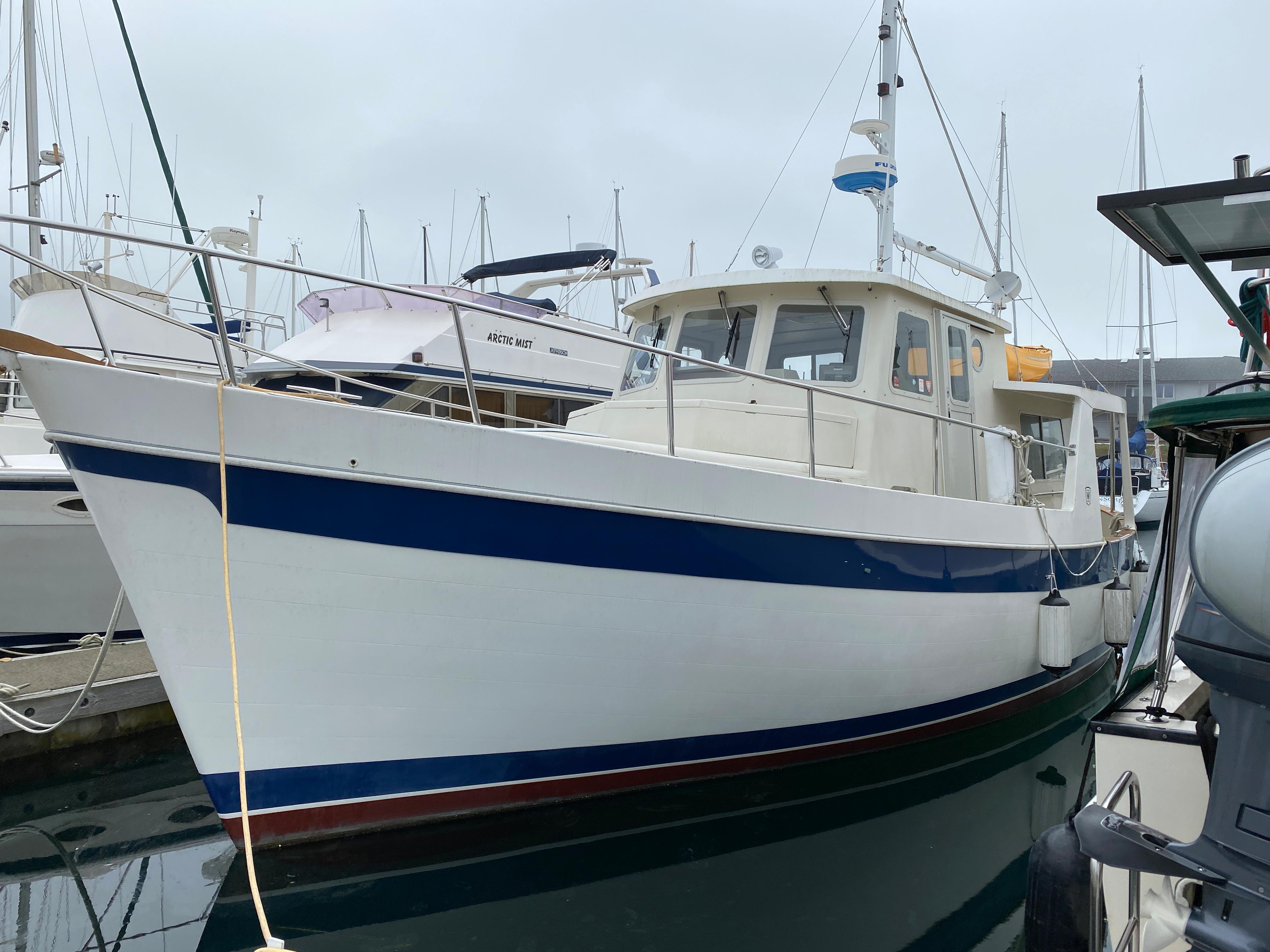

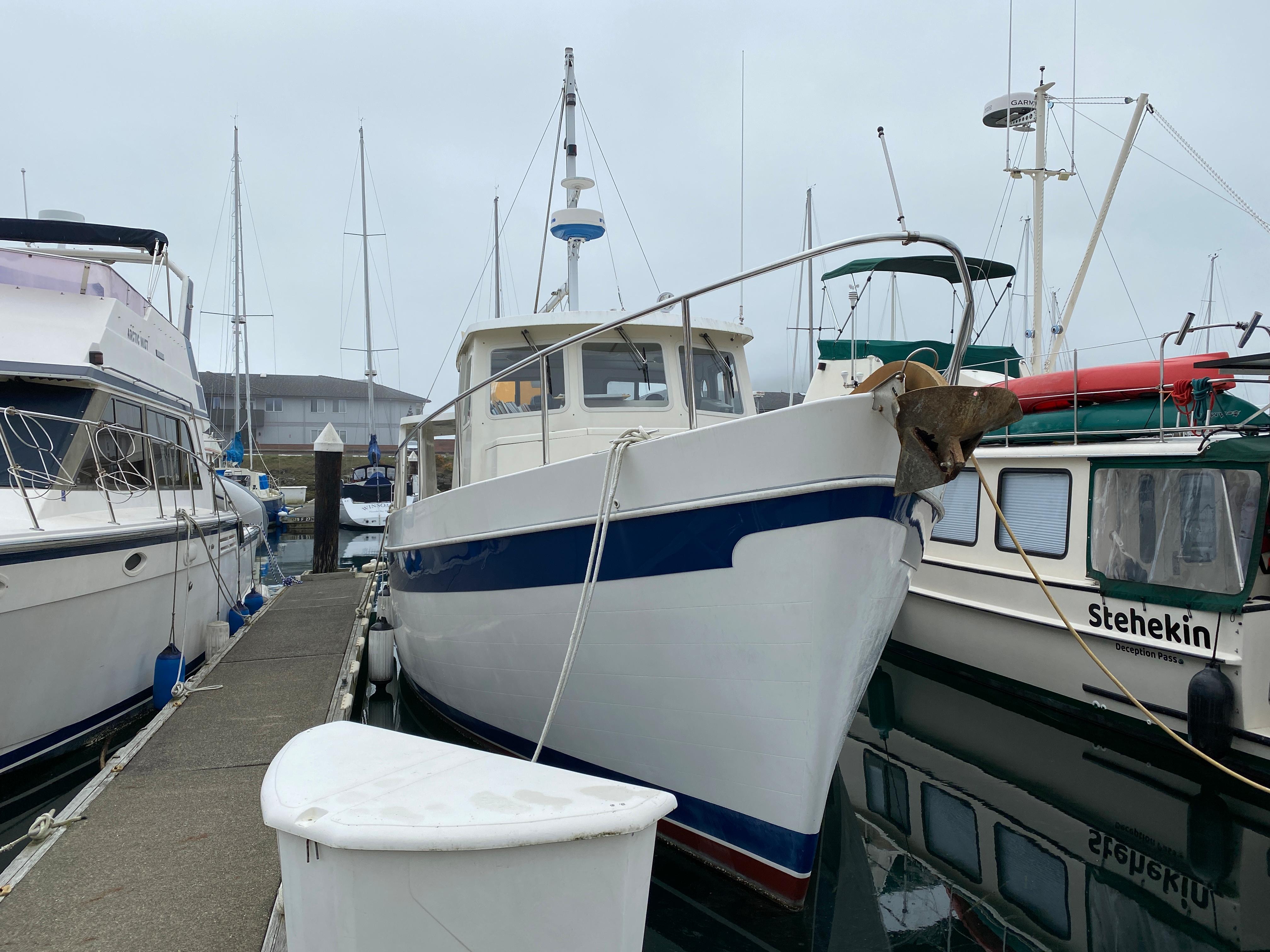

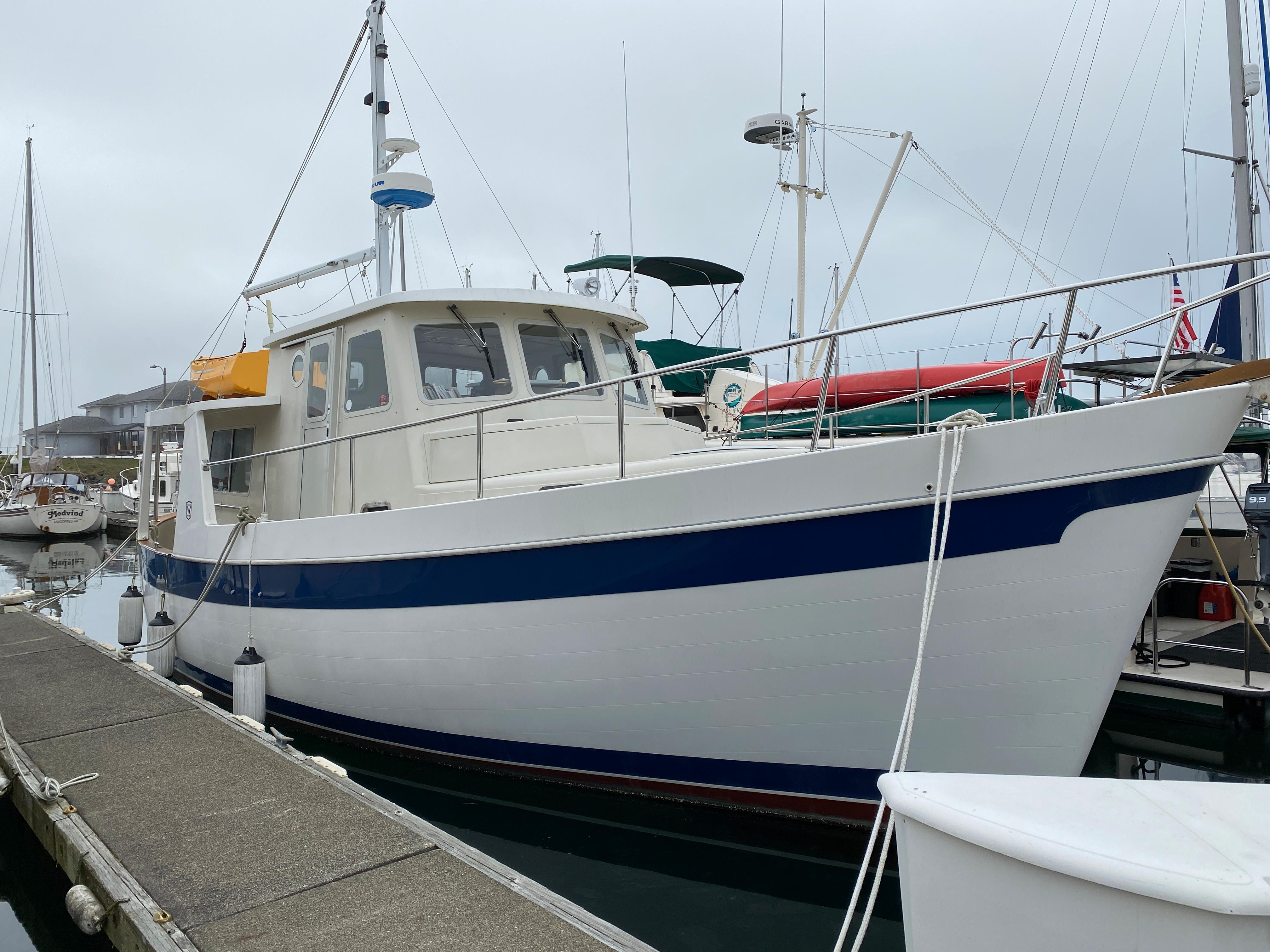

2001 40 ft Willard Marine Pilothouse | Anacortes ,WA

  • Price $ 199,900
  • Boat Name Raffamuggin II
  • MAKE / Model Willard Marine
  • Builder
  • Construction Fiberglass
  • Length 40 ft
  • Beam 13.67 ft
  • Draft 4.25 ft
  • Cabins 2
  • Engine(s) Cummins, diesel

Description

2001 Willard 40' Pilothouse Powered by 115hp Cummins Diesel engine. Great cruiser!


  • Construction

    Hand laid, 100% solid fiberglass construction used in the hull. Vinylester resins are used in first two laminates. Fiberglass is laid up in one shift as per military specifications, which eliminates secondary bonds.

    Topsides are hand-laid composed of end-grain balsa sandwich core in horizontal surfaces for heat insulation and closed-cell PVC sandwich core in vertical surfaces for high strength.

    Exterior gel coat finish is impact resistant isothalic with a nominal 25-mil thickness.

    All non-skid surfaces are molded into the deck.

    Water resistant polyurethane sealants are used in all joints and fittings. Approximately 20% or more of the displacement ballast encapsulated and sealed in the keel.

    Marine grade plywood used for all structural construction. Fire resistant U.S. Coast Guard approved hose is used for fuel and steering connections with reusable flare fittings.

    Engine stringers are continuous with separate, heavy duty engine mounts. The hull is divided into three watertight compartments with separate bilge pumps in sumps to maintain a dry bilge. The bow contains a water tight collision bulkhead.

    Shore power connection is marine grade, shielded wiring cables, all of which meets ABYC standards. High pressure lines are Aeroquip.

    Manufactured in Southern California

    Hull: molded fiberglass, hand laminated, 3/8" to 3/4" thickness

    Bulkheads: 3/4" structural marine plywood bonded to hull

    Stringers: four, structural longitudinal girders, polyfoam cored fiberglass

    Vetus Bow thruster

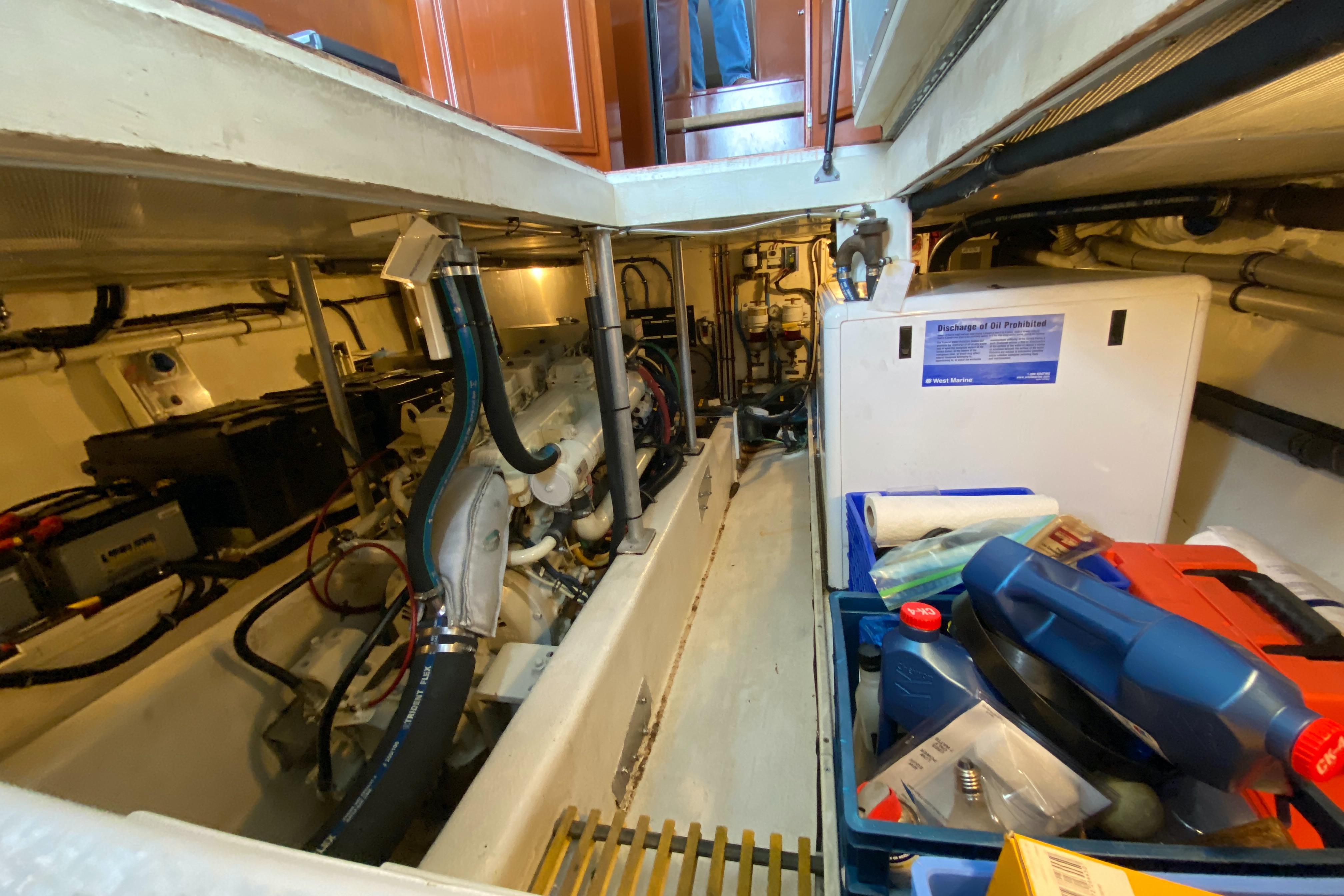

  • Mechanical

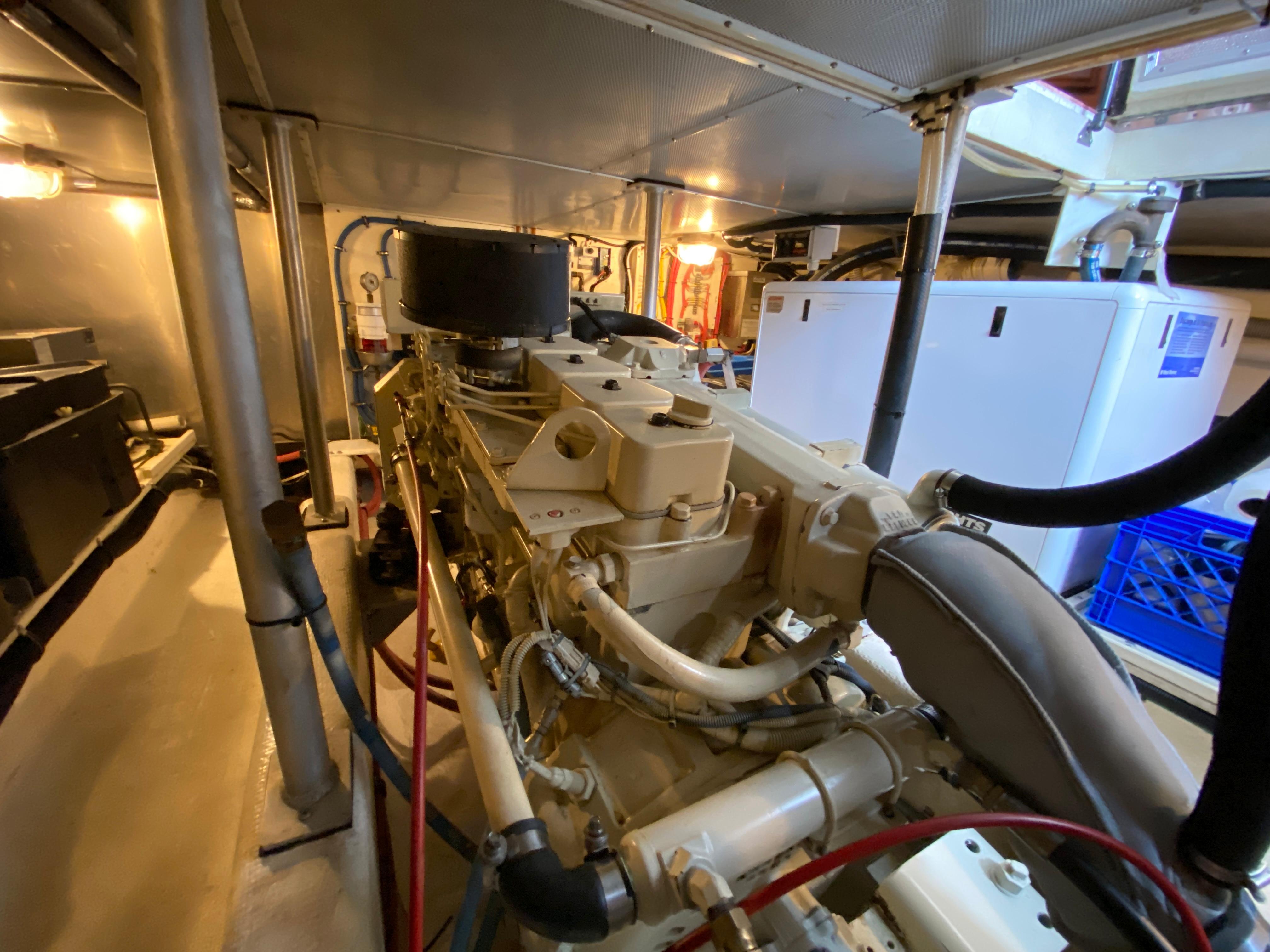

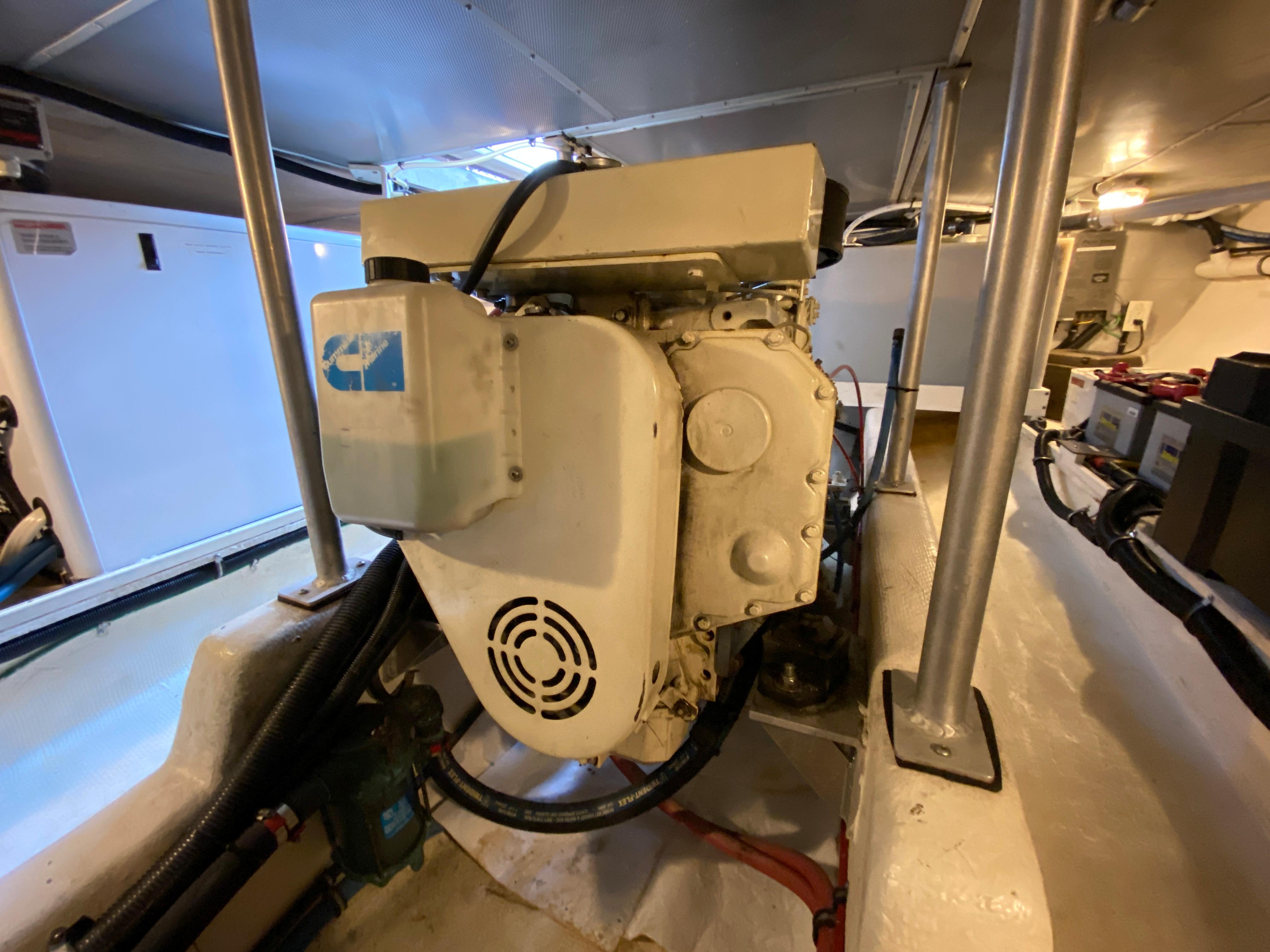

    Engine: naturally aspirated, fresh water cooled

    Reduction gear: Twin Disc, 2.45:1 ratio

    Alarm; engine: audible system for oil pressure, water temperature, and voltage

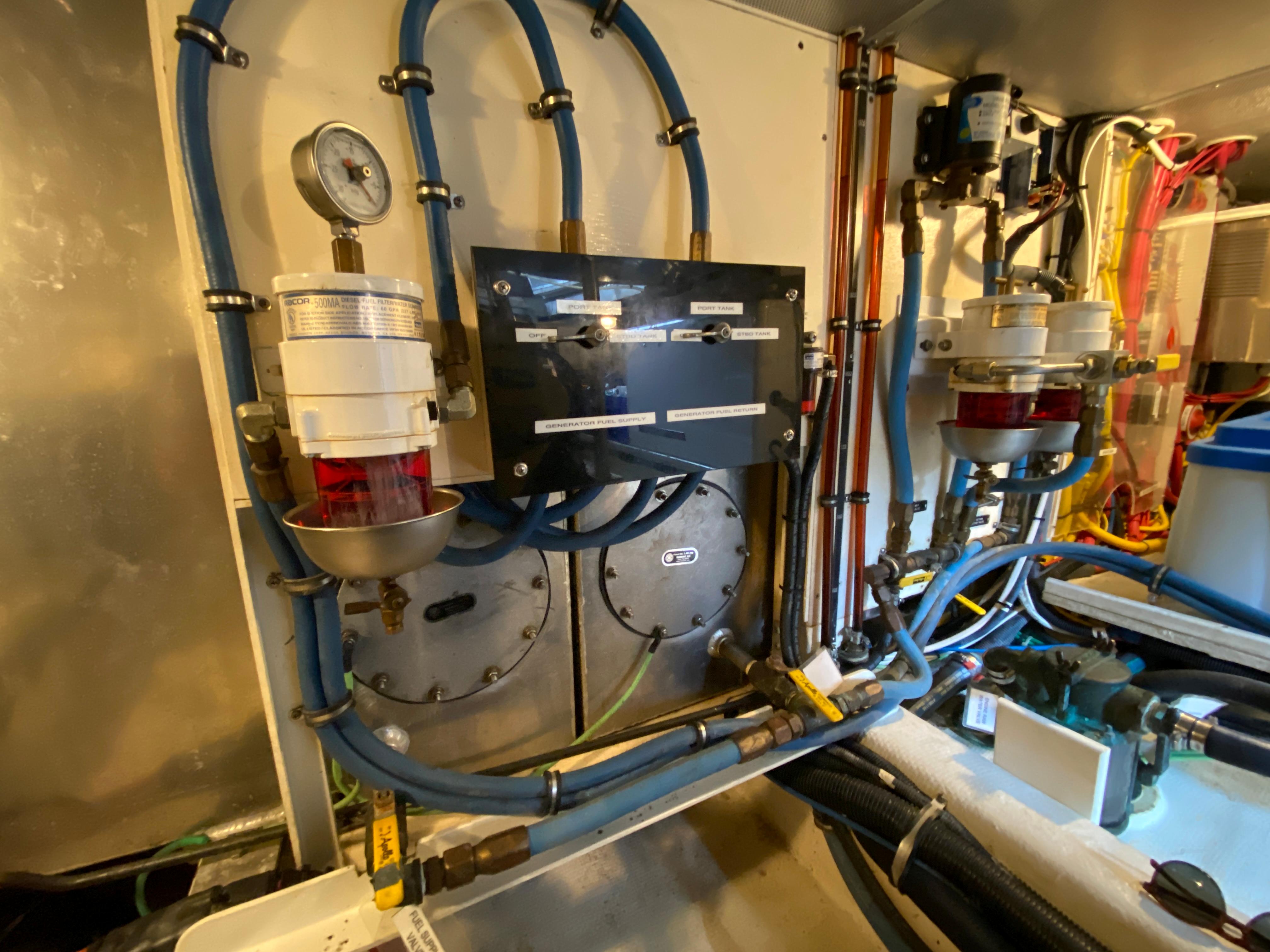

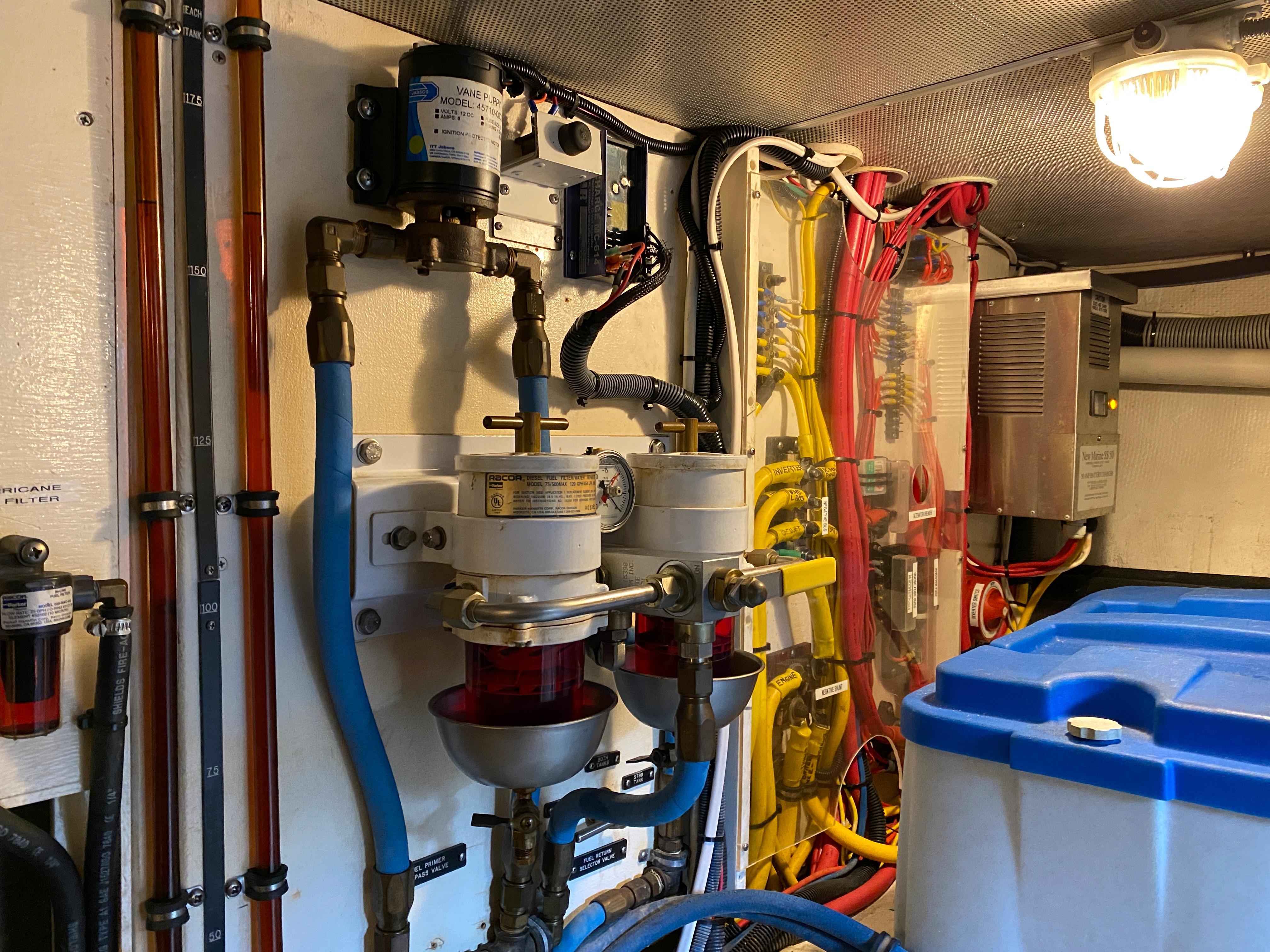

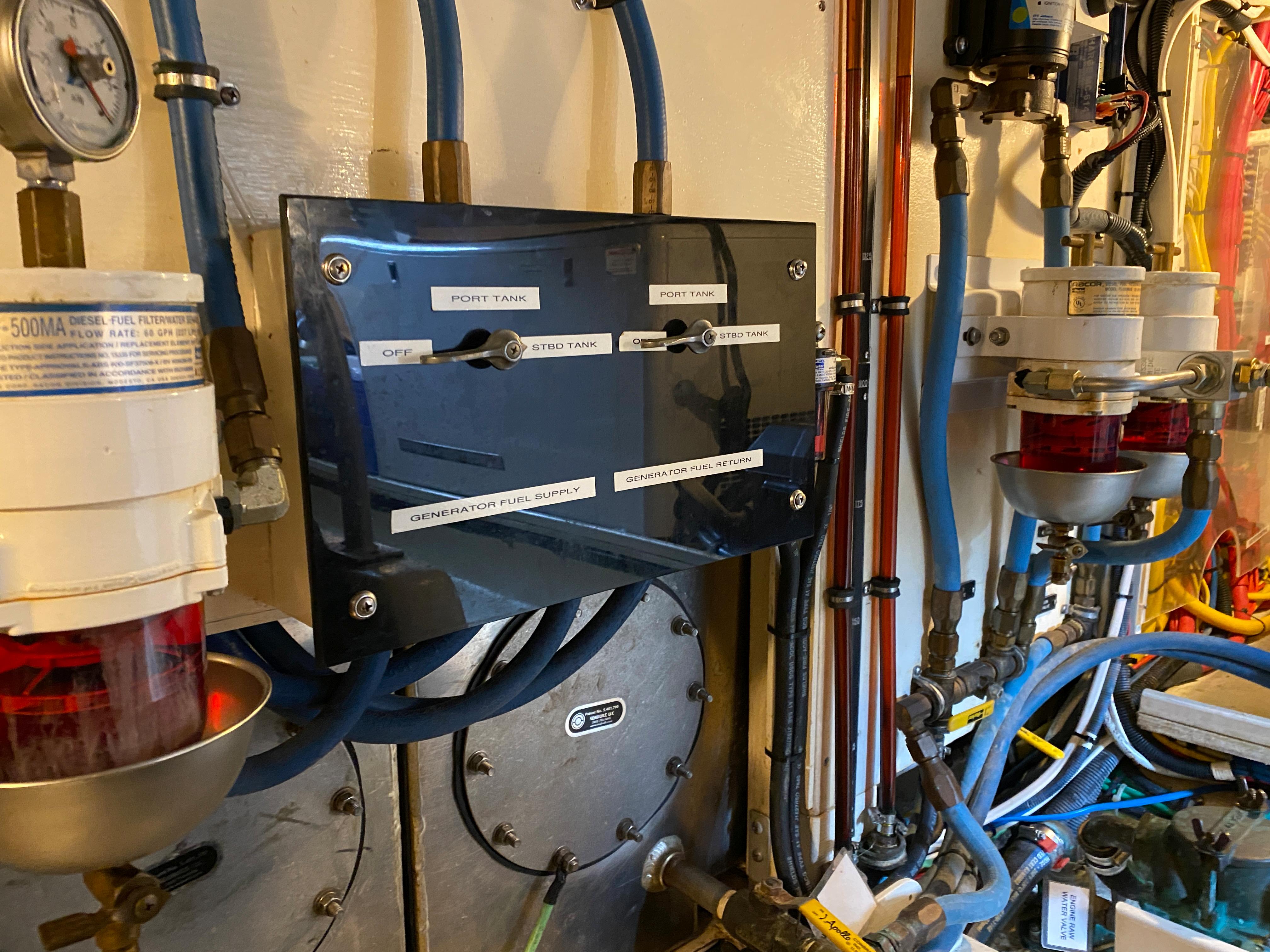

    Filters; fuel: dual primary and engine supplied secondary

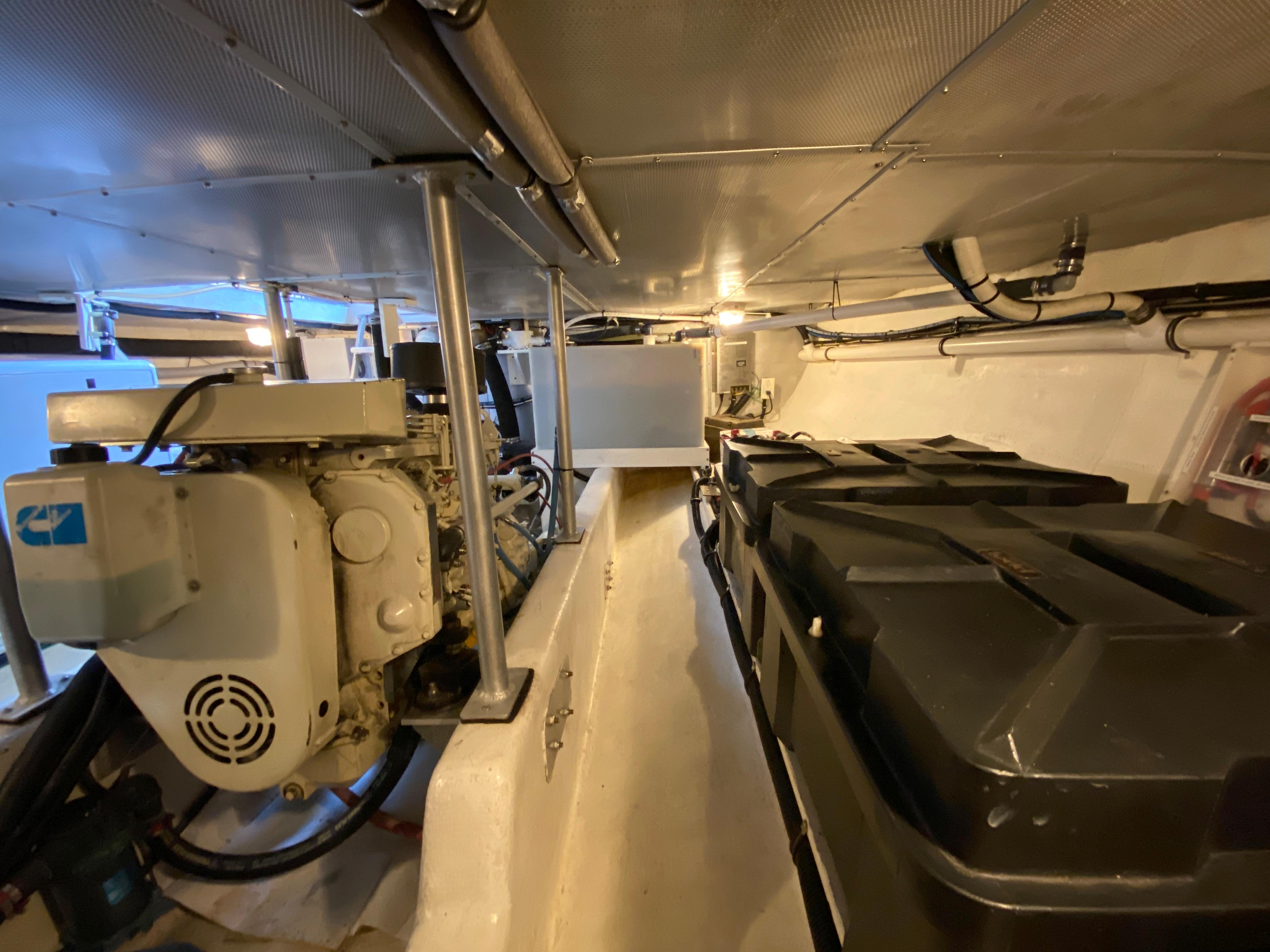

    Engine room: sound insulated

    Exhaust silencer; main engine: waterlift type

    Propeller shaft: 1-3/4" stainless steel Aquamet

    Hose clamps: double stainless steel on all hose fittings where appropriate

    Seacocks: bronze on all underwater thru hulls

    Water system: hot and cold pressure with accumulator tank

    Propeller: 24", 3 bladed bronze, left hand

    Tiller: aluminum emergency

    Rudder: high density foam and fiberglass with stainless steel stock, webbs and solid, cast maganese-bronze skeg.

    Bilge pumps: three automatic 12VDC in separate wells.

    Water tank: with baffles, on deck fill and vent.

    Fuel tanks: with baffles, on deck fill and vent.

    Water heater: 11 gal. stainless steel, heated by engine or shore power system.

    Hurricane Heating System

    Windlass

    Strong Arm electric dinghy winch

    Lights: two overhead in engine room, 12VDC

    Receptacle: one in engine room, 110VAC

    Chases; mechanical & electrical: three, running fore and aft from engine room to forward stateroom

    Piping; water: insulated copper

    Blower; engine room: one 12VDC, centrifugal

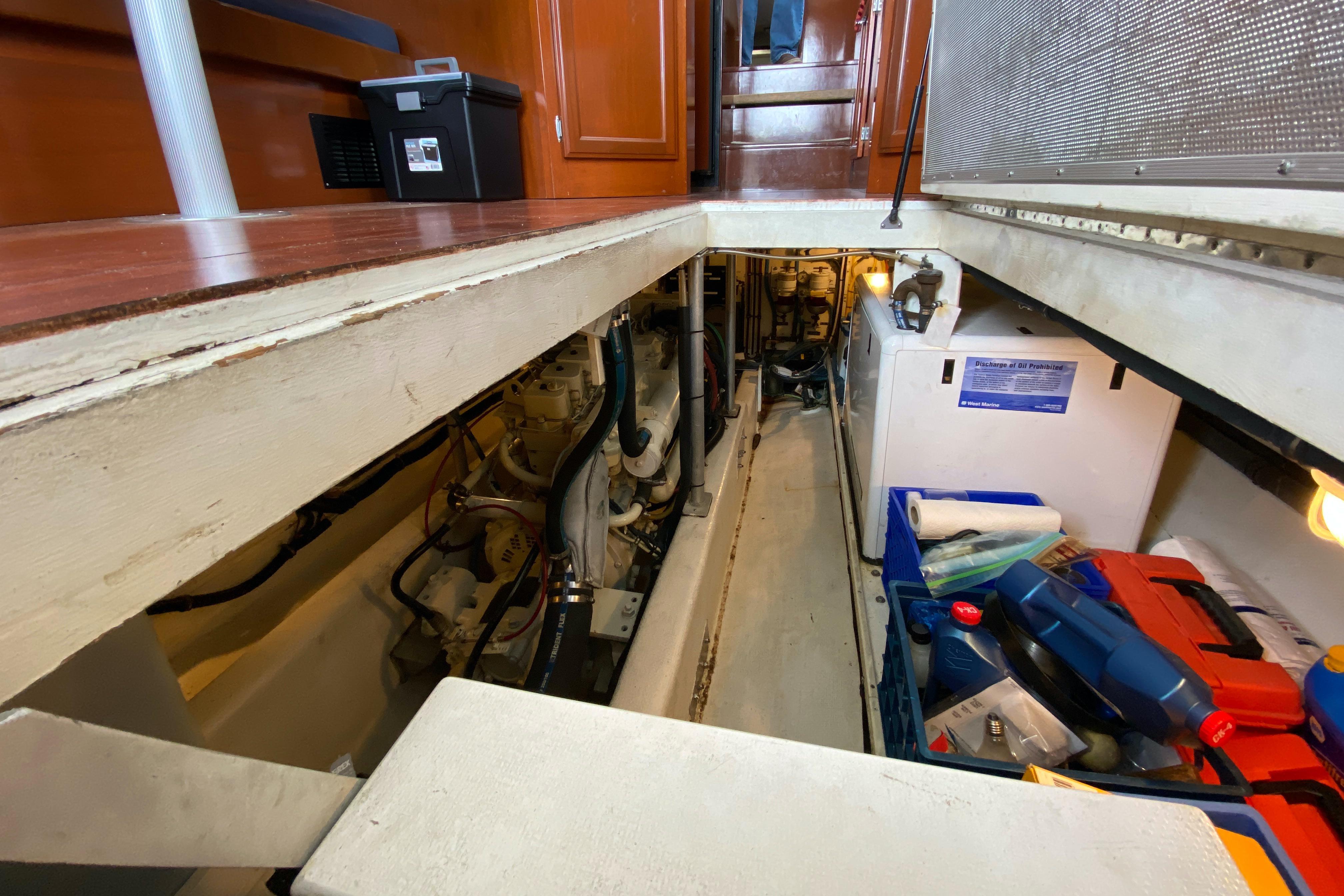

    Hatch; engine room: large size with gas shock assist

    Steering: hydraulic

  • Electrical

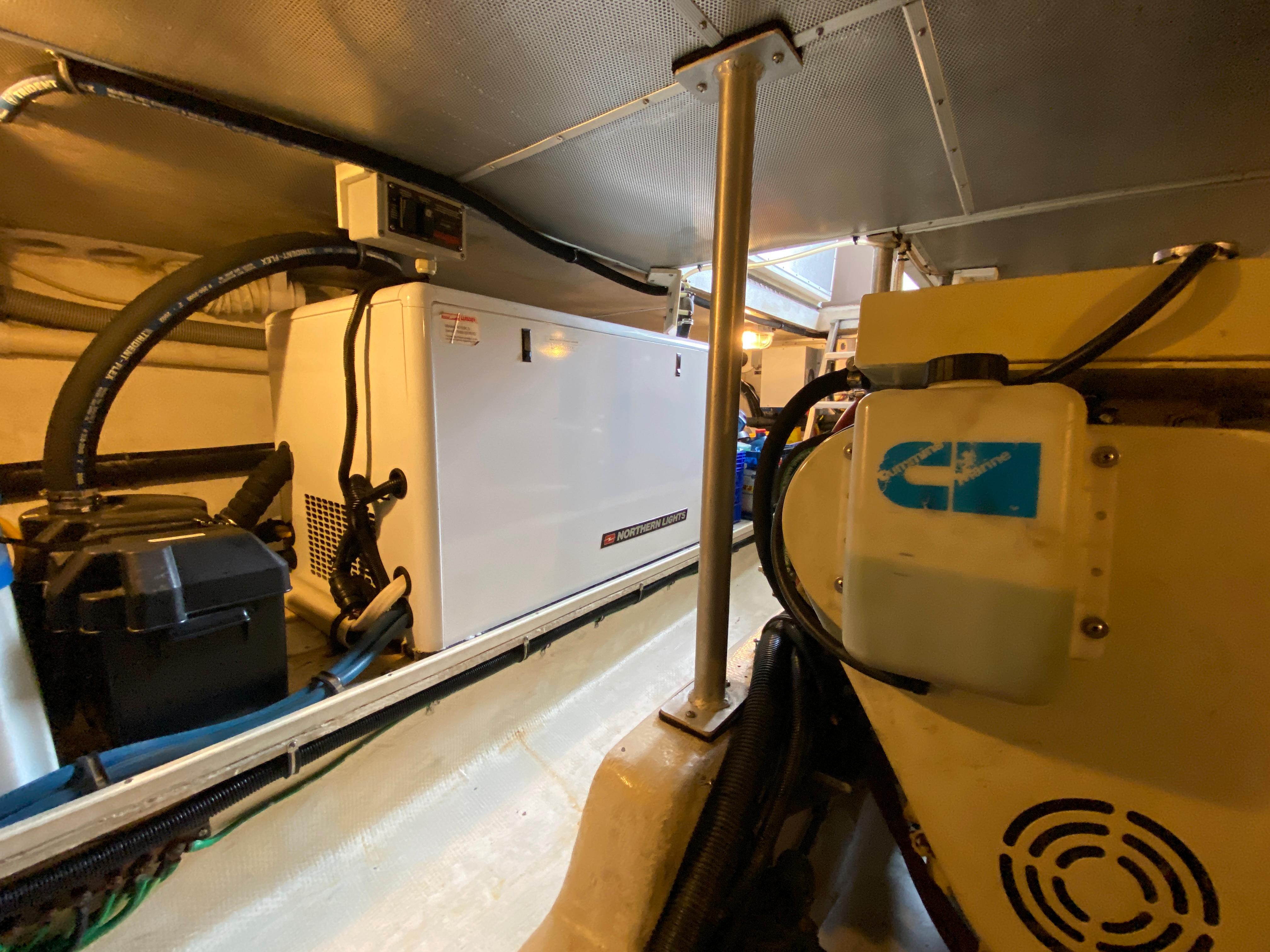

    Northern Light Generator

    Xantrex Link 2000

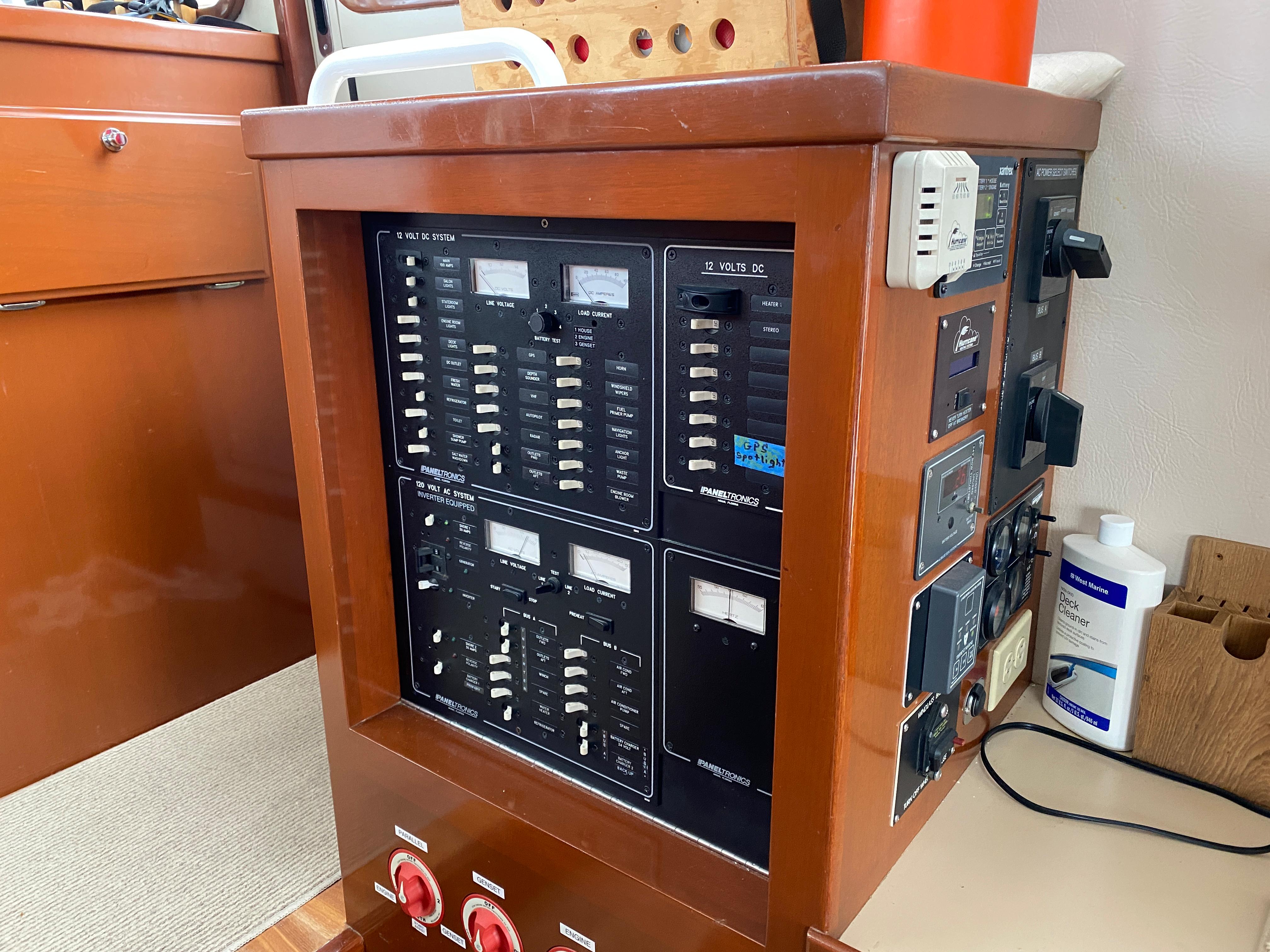

    Electrical panel: 12VDC & 110VAC circuit breakers, volt meter, and battery selector switch

    Alternator: 105 amp or as supplied with engine

    Battery; Starting: 12V in box.

    Batteries; house: two, total 225 A/H, in box.

    Battery Charger: 20 amp

    Horn: double stainless steel, 12VDC

    Lights; running and navigation: 12VDC, per COLREG requirements

    Zinc Plate: one large bonded to all underwater thru-hulls shaft and rudder

    Mast Mounted Deck light

  • Electronics

    Furuno Radar 2003

    Furuno GPS/WAAS

    Furuno RD 30

    Simrad Auto Pilot

    Icom M502 VHF Radio

  • Interior

    Interior components and "fit and finish": yacht quality with durable finish

    Interior surfaces: vinyl wall covering except where noted

    Floor covering: carpet except where noted

    Head liner: vinyl covered panels attached with Velcro

    Accent trim: hardwood

    Drawers fronts and cabinet doors: hardwood: raised panel

    Exposed backs of cabinets: plastic laminate, vinyl, or finished fiberglass

    Counter tops: plastic laminate with hardwood rails except where noted

    Windows: 1/4" tempered clear glass except three windshields, which are 3/8" tempered glass

    Frames; exterior, window and door: aluminum frame with enamel finish, all to have radiused corners and color matched to deckhouse sides

    Frames: interior, window and door: covered with a finished hardwood frame except where noted

    Galley and saloon selected bulkheads: hardwood surface

    Cushions; settee, helm, pilot berth and mattresses: appropriate thickness, medium firmness foam

    Cushion coverings: settee, seats, and mattress: standard fabric material

    Light switches: all overhead lights to be controlled with wall switches

    Portlights: all to be stainless steel with screens

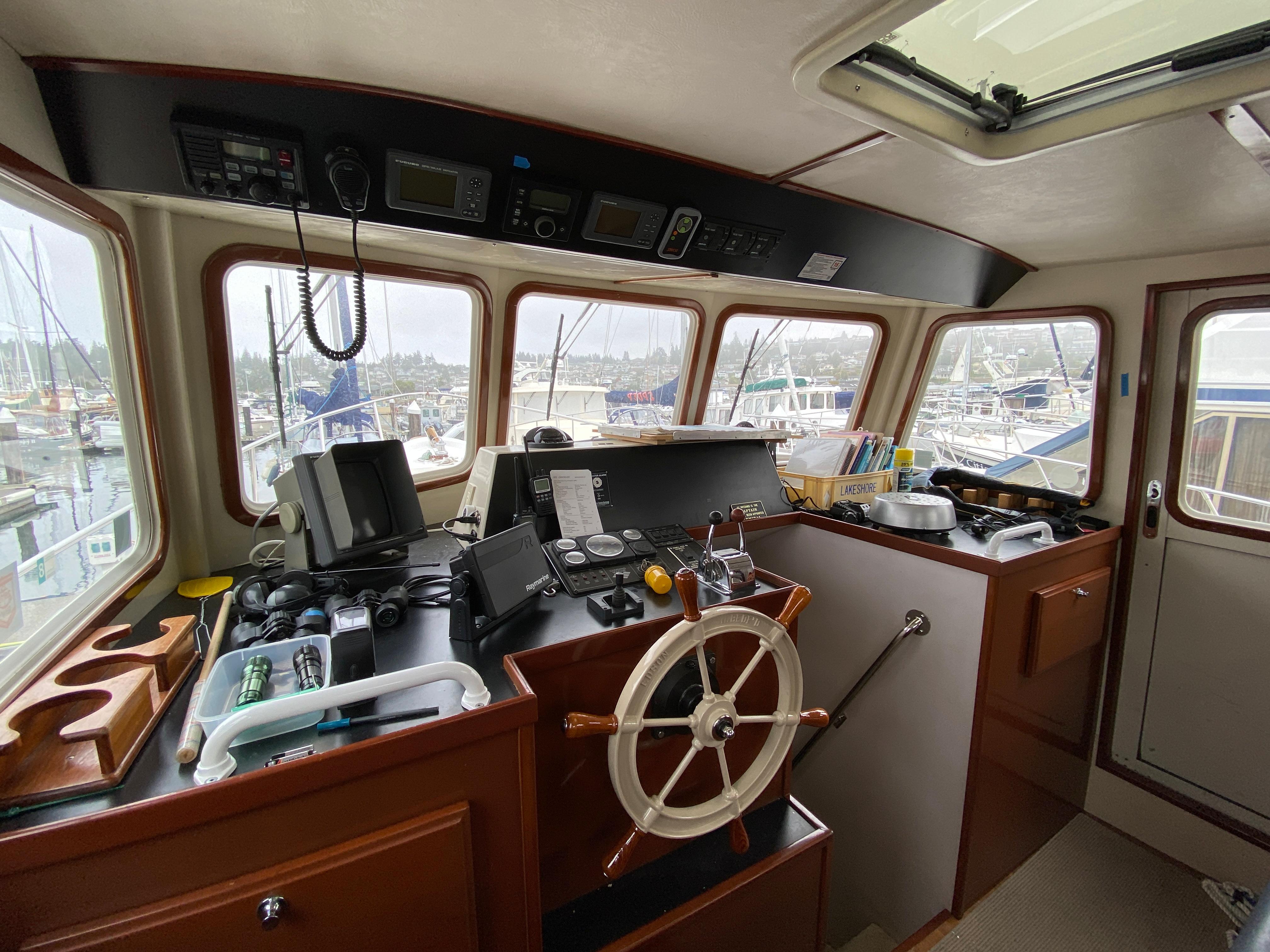

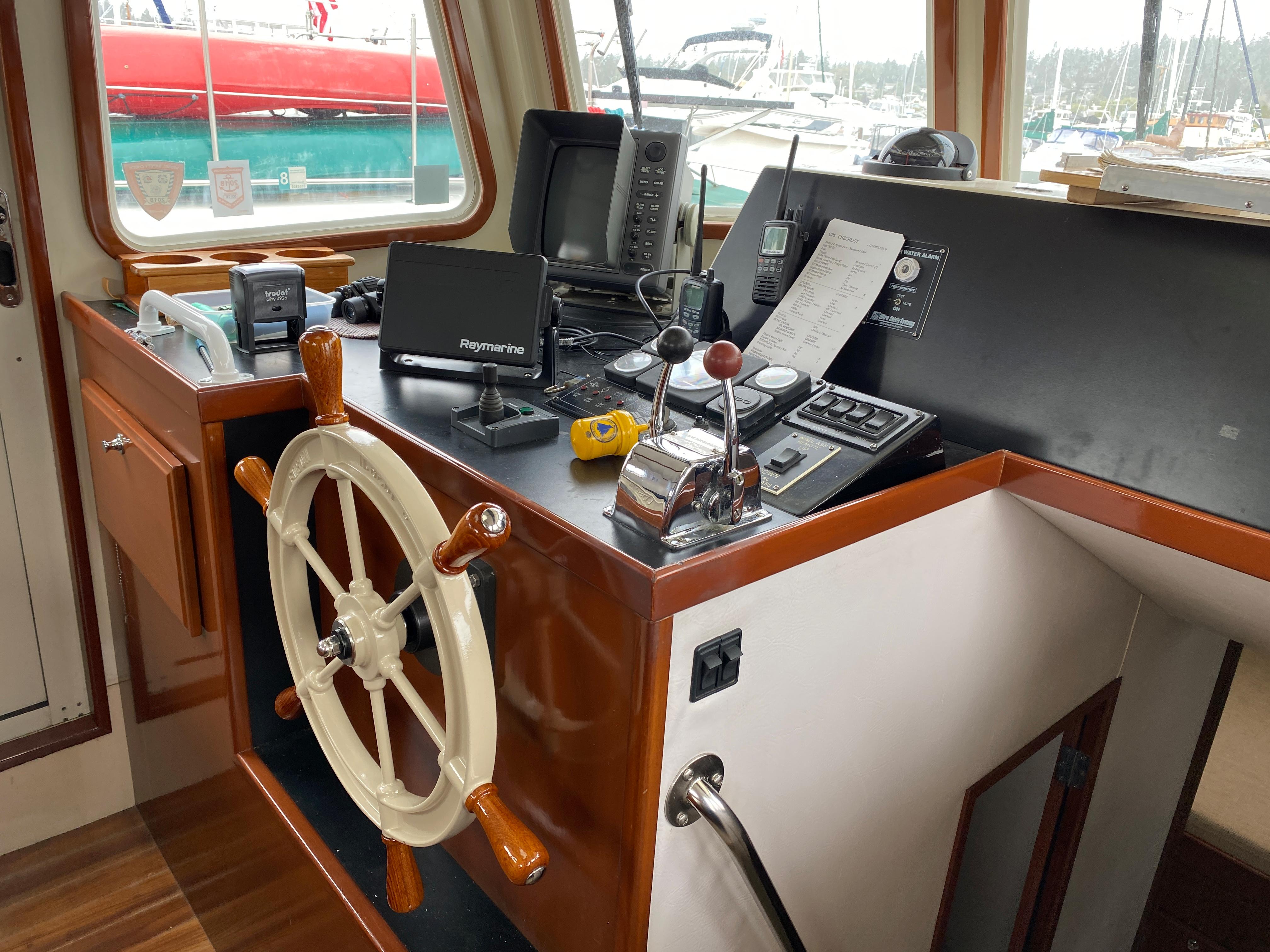

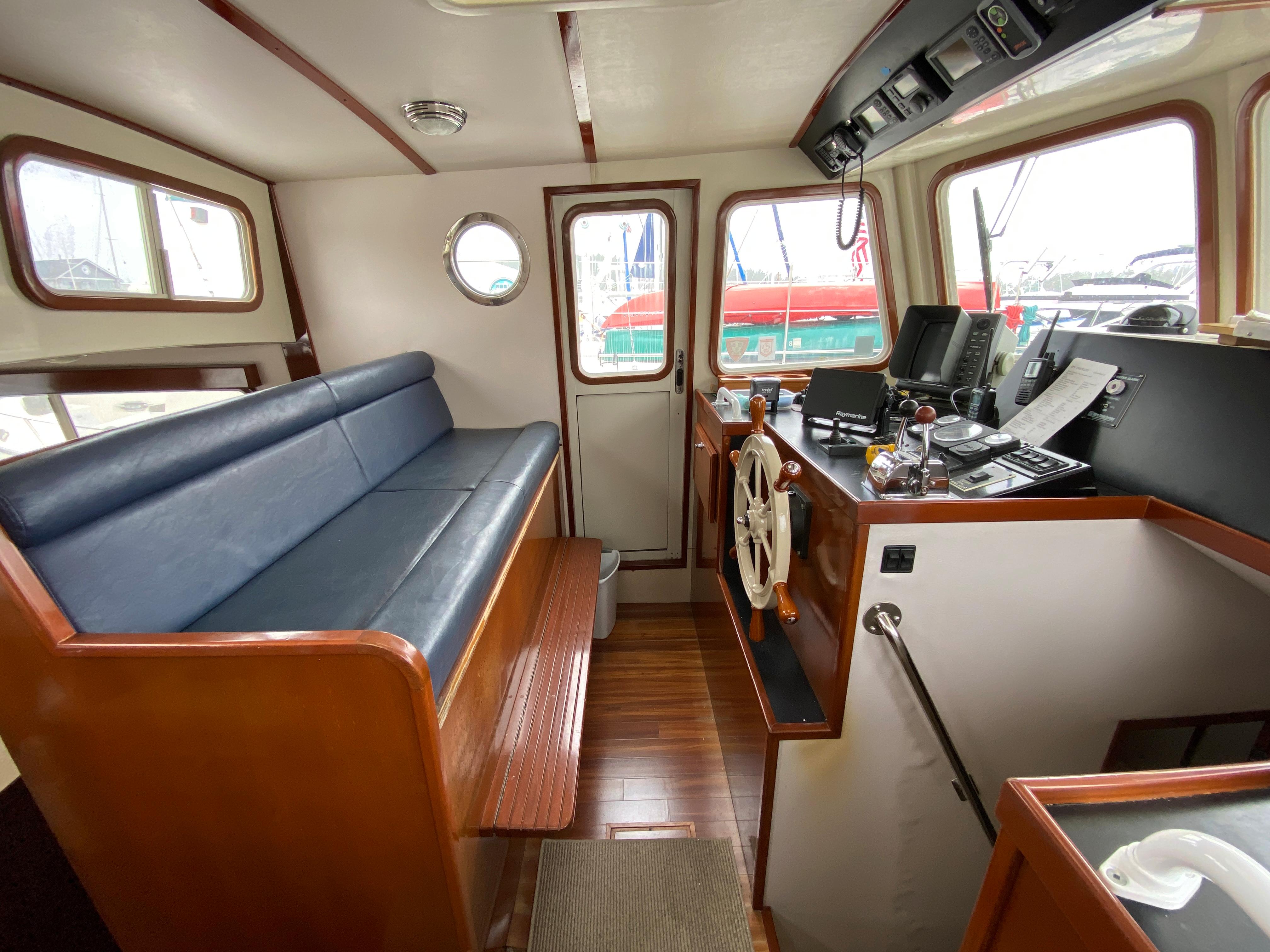

  • Pilothouse

    Controls; engine and transmission: dual lever, single function

    Helm wheel: 24" stainless steel destroyer style

    Windows: fixed in forward pilothouse with 3 windshield wipers

    Hatch: 16.5" sq. approximately, overhead

    Doors; port & starboard: sliding with fixed glass windows

    Windows: sliding glass in aft pilothouse, aluminum frame

    Lights; overhead: two 12VDC, white/night light combo

    Compass: 4.5"

    Receptacles: two, 110VAC and one 12VDC

    Foot rest: fold down hardwood

    Chart table: stand up with storage under

    Overhead panel: hardwood face

    Portlights: two, fixed

    Sole: hardwood

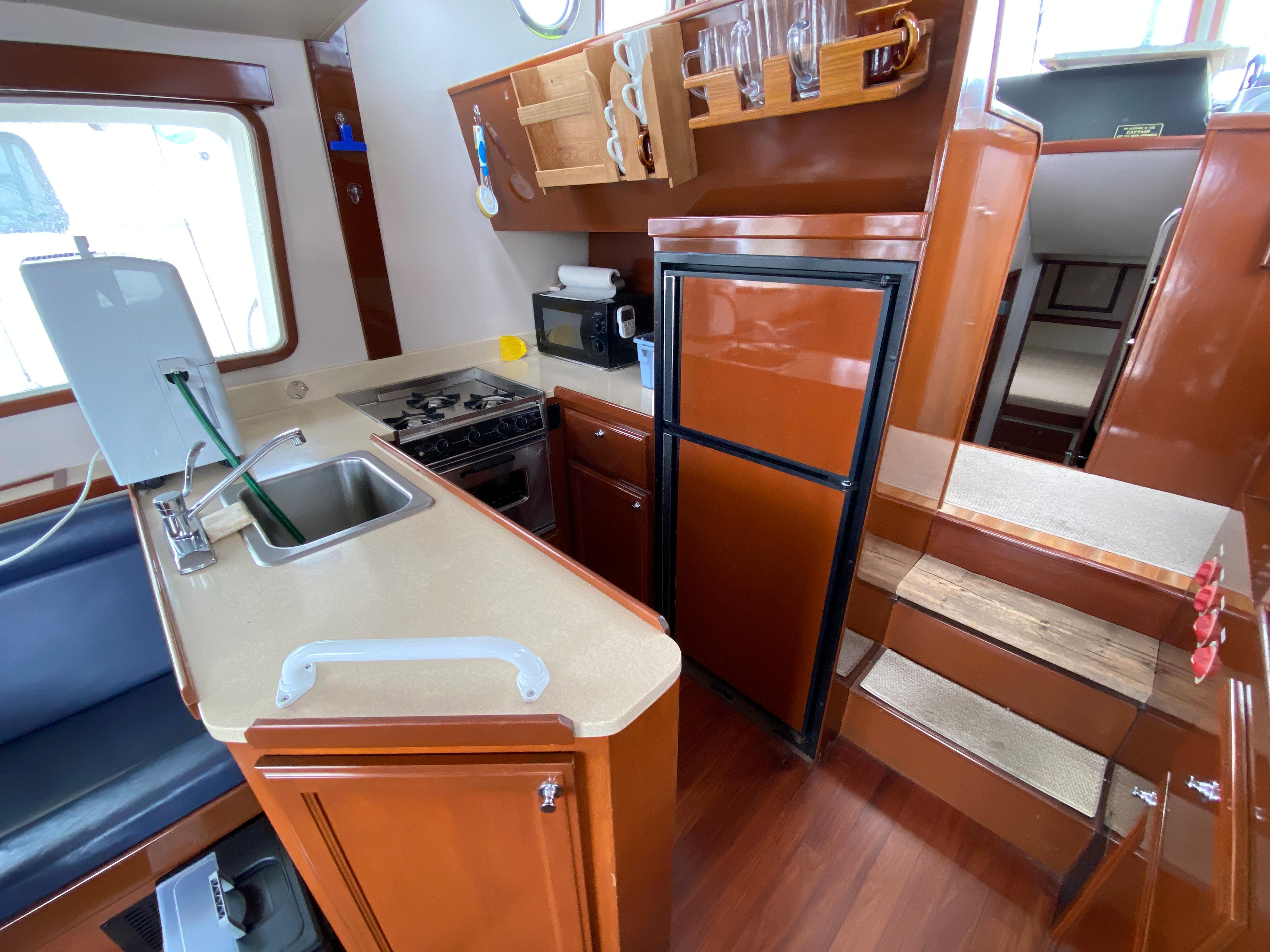

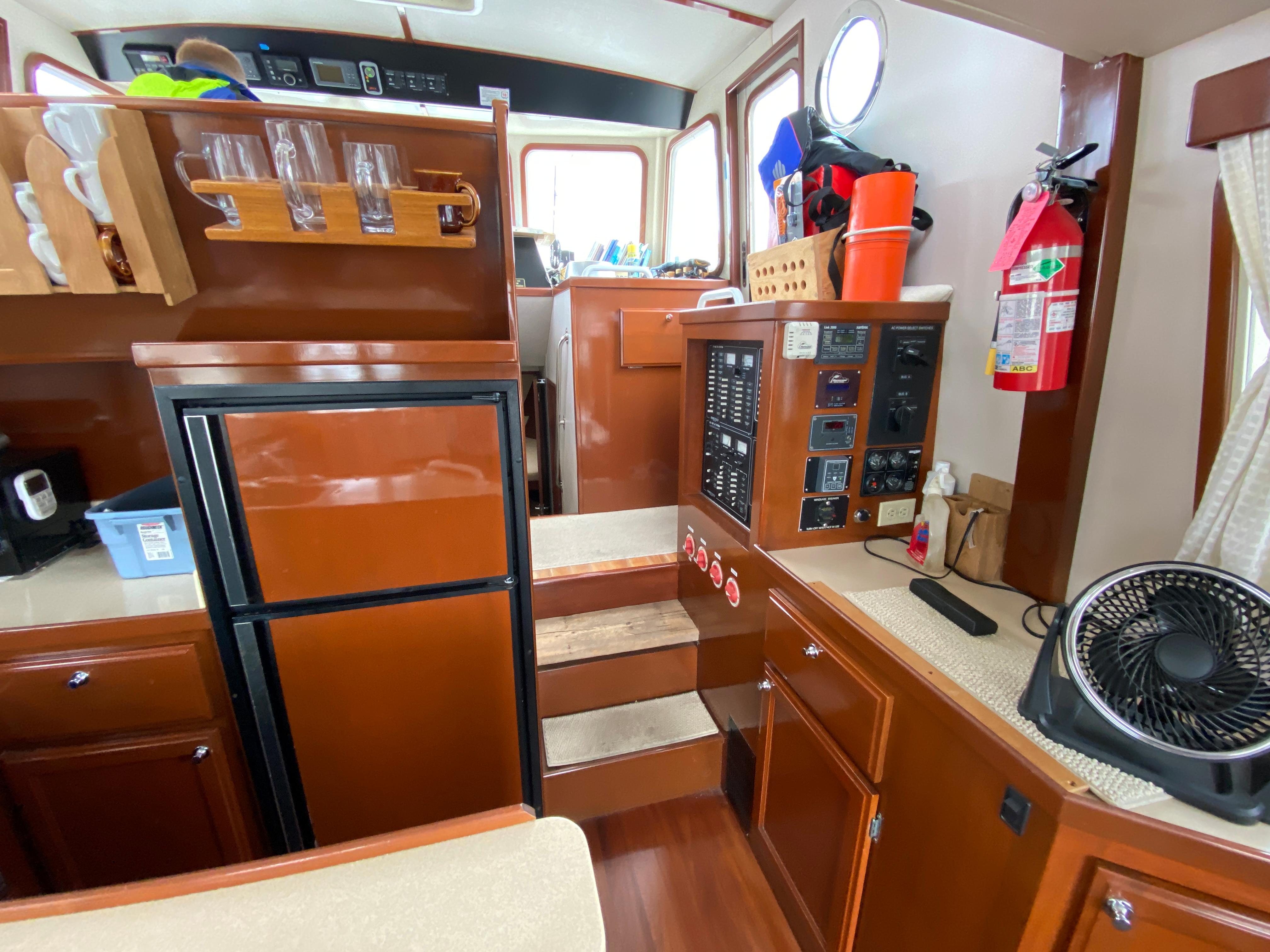

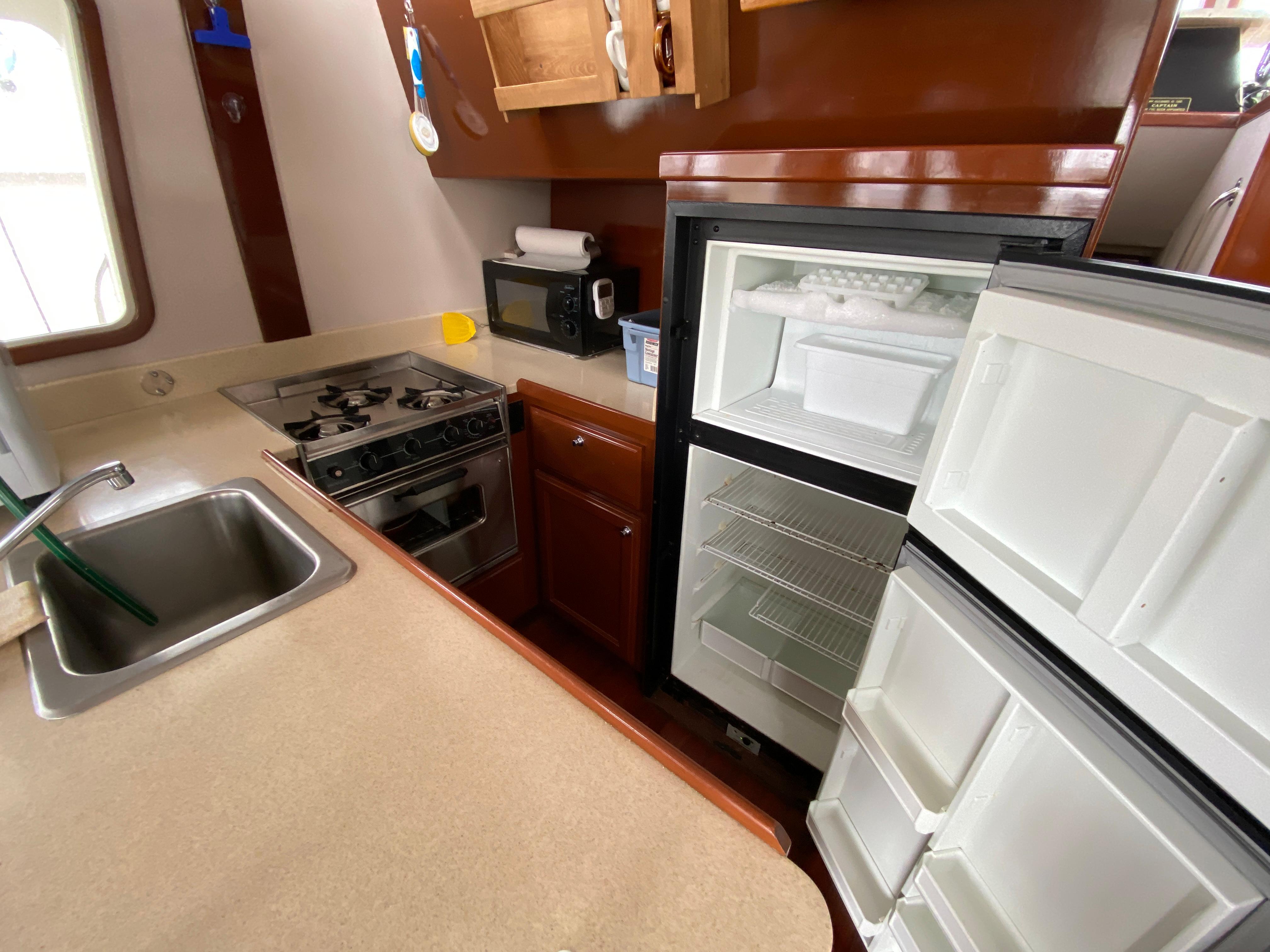

  • Galley

    Counter top: solid surface material with hardwood rails.

    Sink: stainless steel

    Galley cabinets: drawers and locker space

    Faucet: single lever, mixer style

    Sole: hardwood

    Refrigerator/freezer: approximately 6.5 cu. ft.

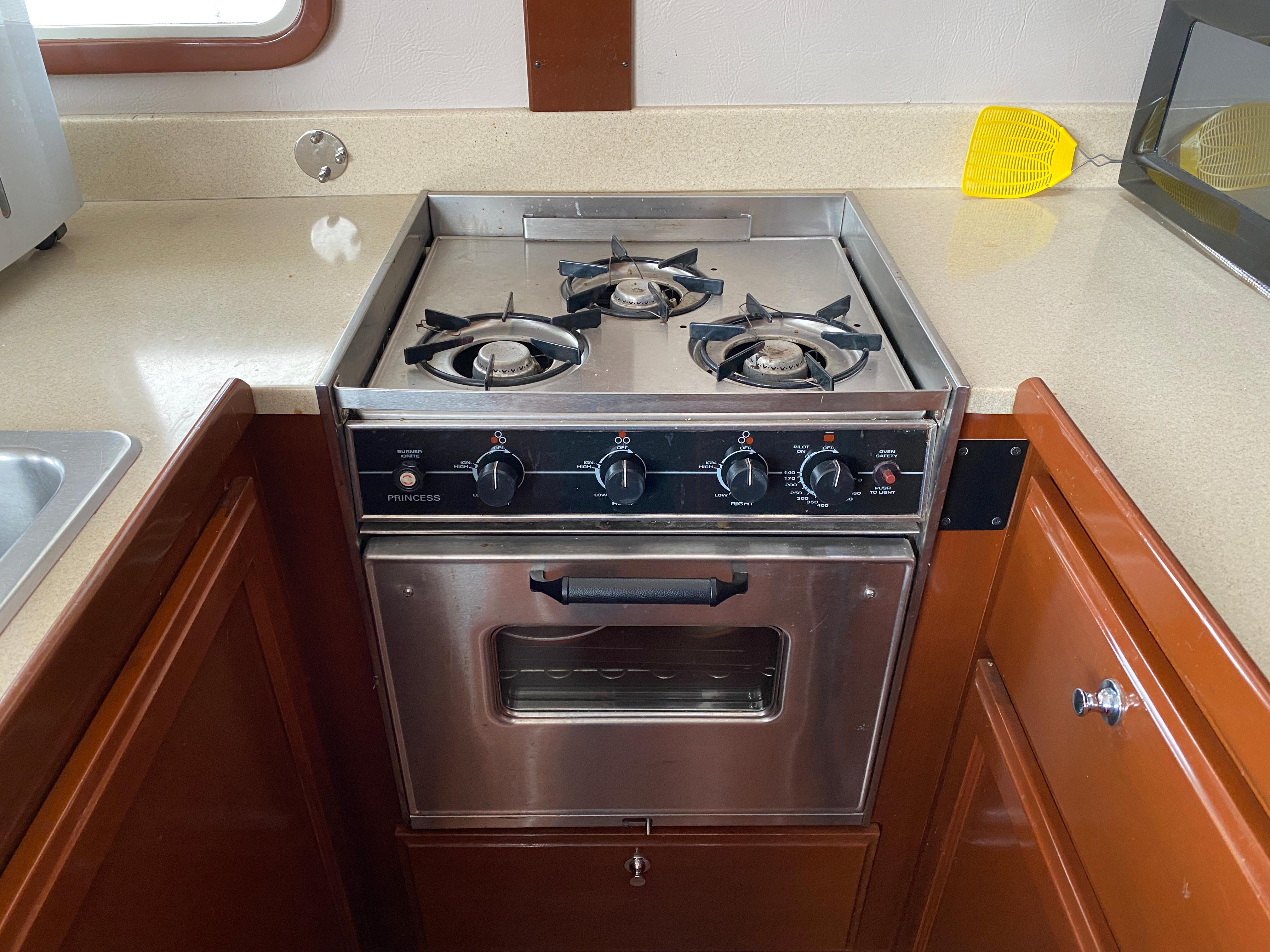

    Range/oven: 3 burner propane with oven.

    Lights: two overhead 12VDC

    Receptacles: two, 110VAC

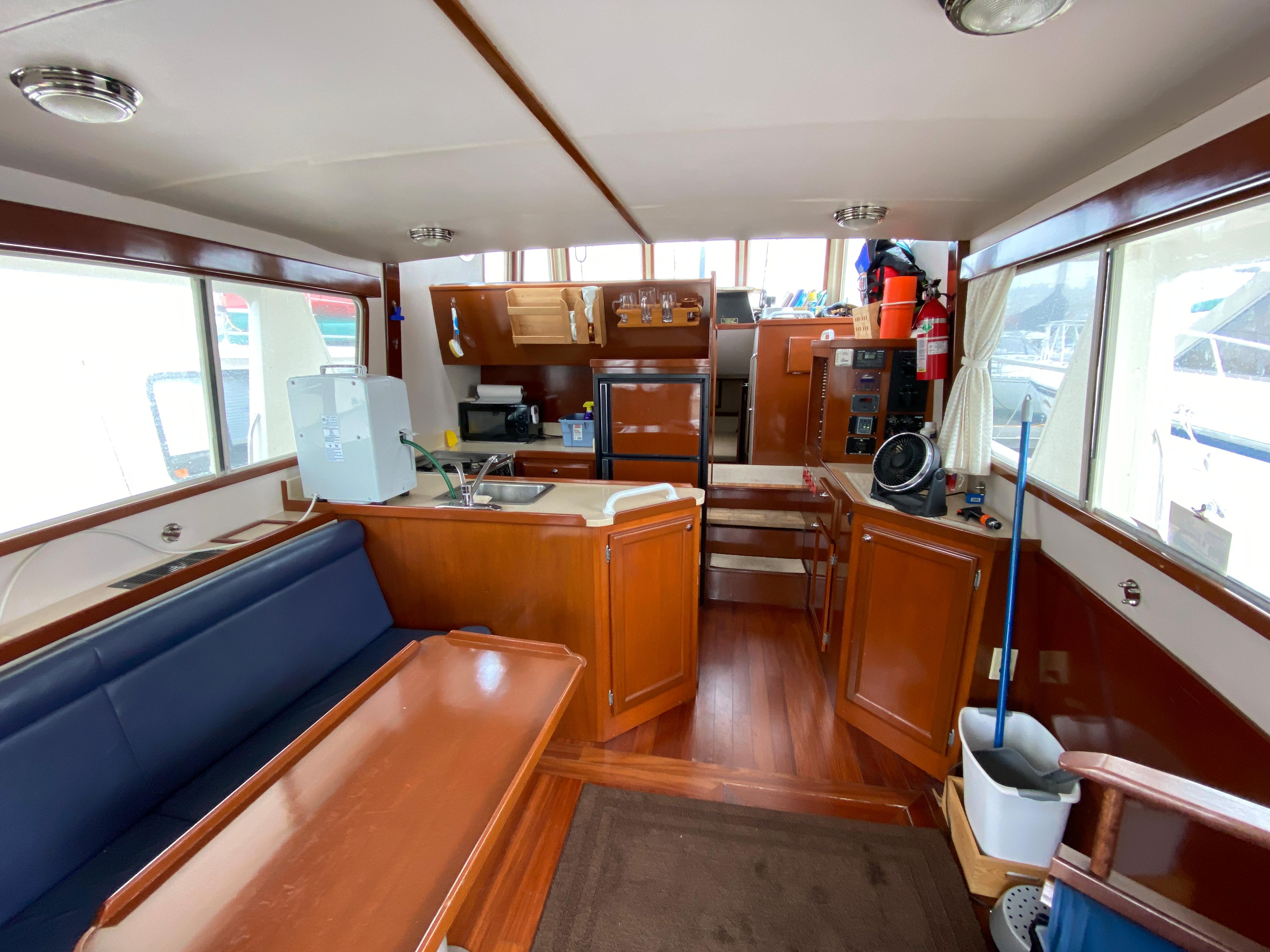

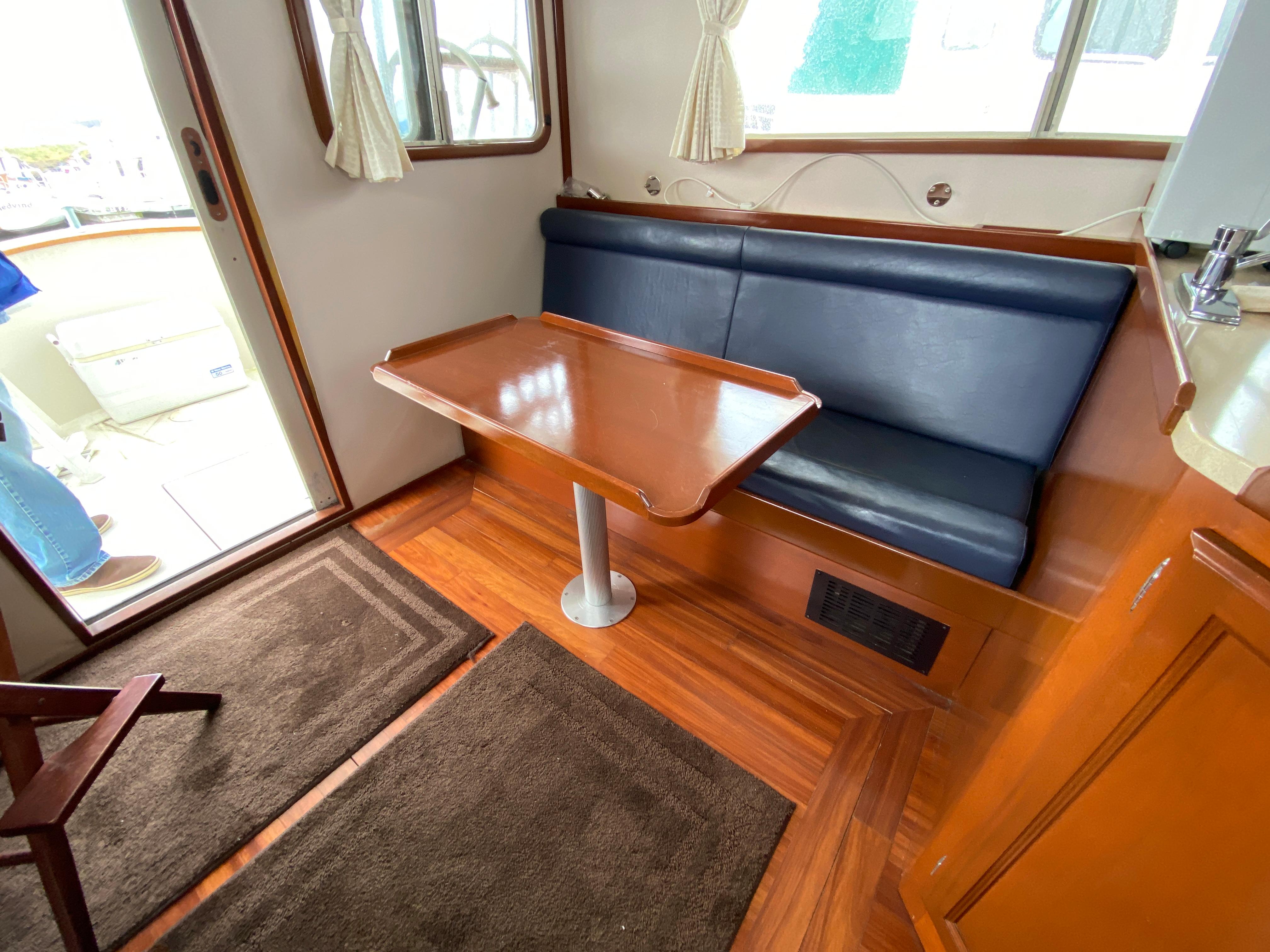

  • Main Salon

    Settee/berth: single, fabric covered

    Dining table: Mahogany

    Windows: four total, one fixed, three sliding

    Cabinet: media or storage with one 110 VAC receptacle

    Receptacles: two 110VAC and one 12VDC

    Storage: under and behind settee on port side

    Storage: lockers and cabinets on starboard side

    Lights: two overhead 12VDC

    Sole: hardwood

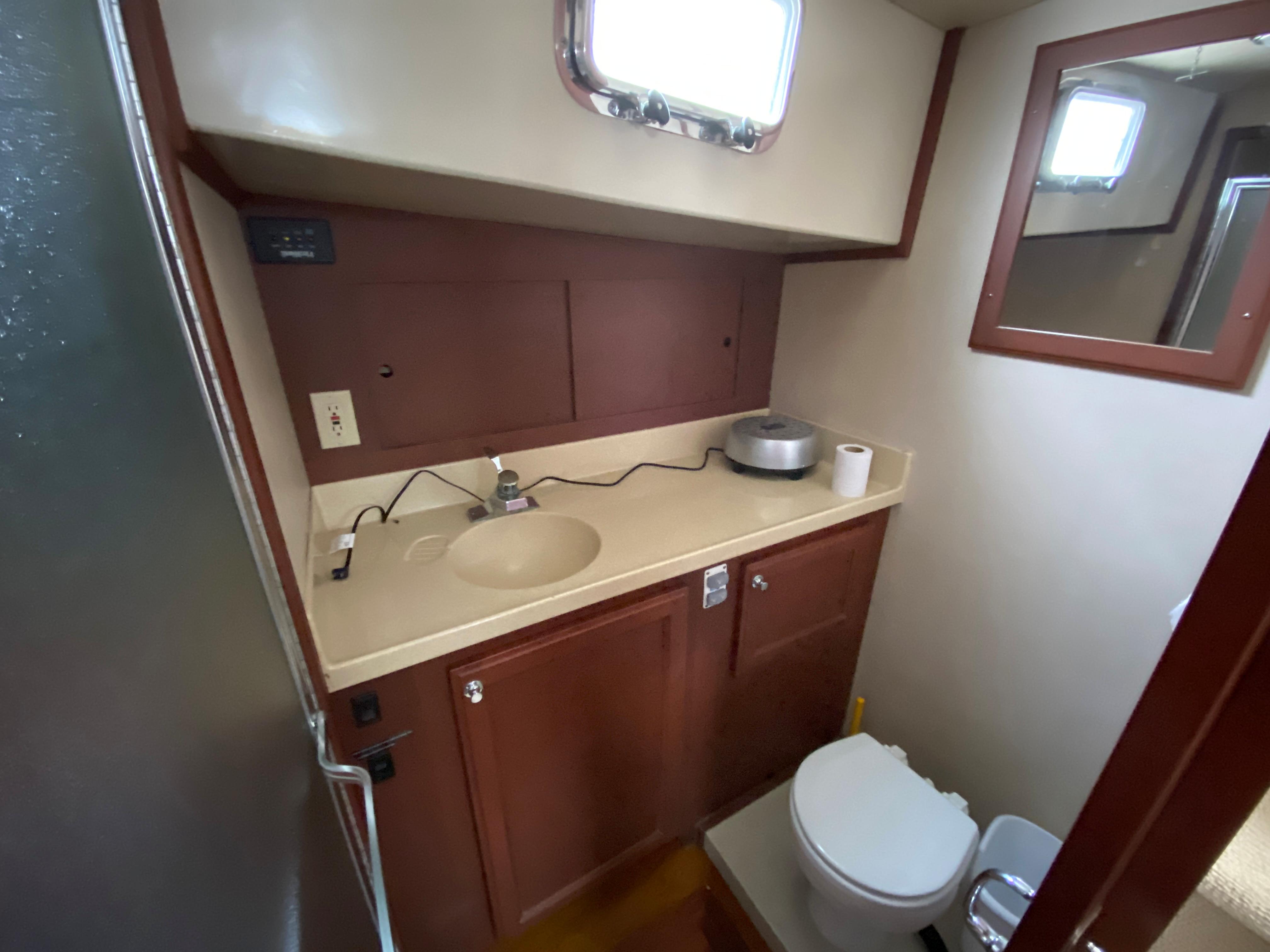

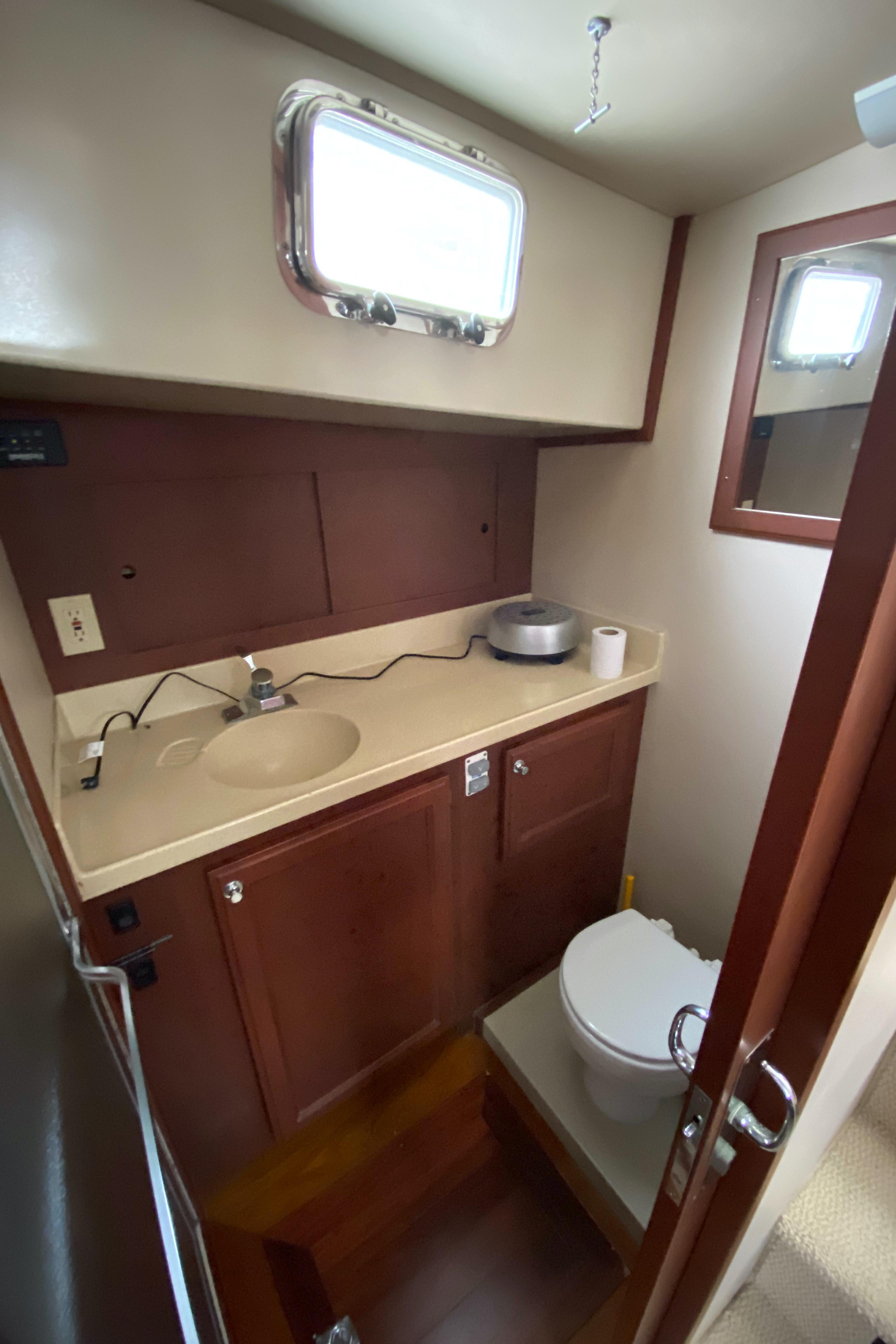

  • Head

    Toilet: Jabsco, compact, 12VDC electric marine with waste macerator pump

    Waste evacuation pump: Jabsco 12VDC plumbed from holding tank

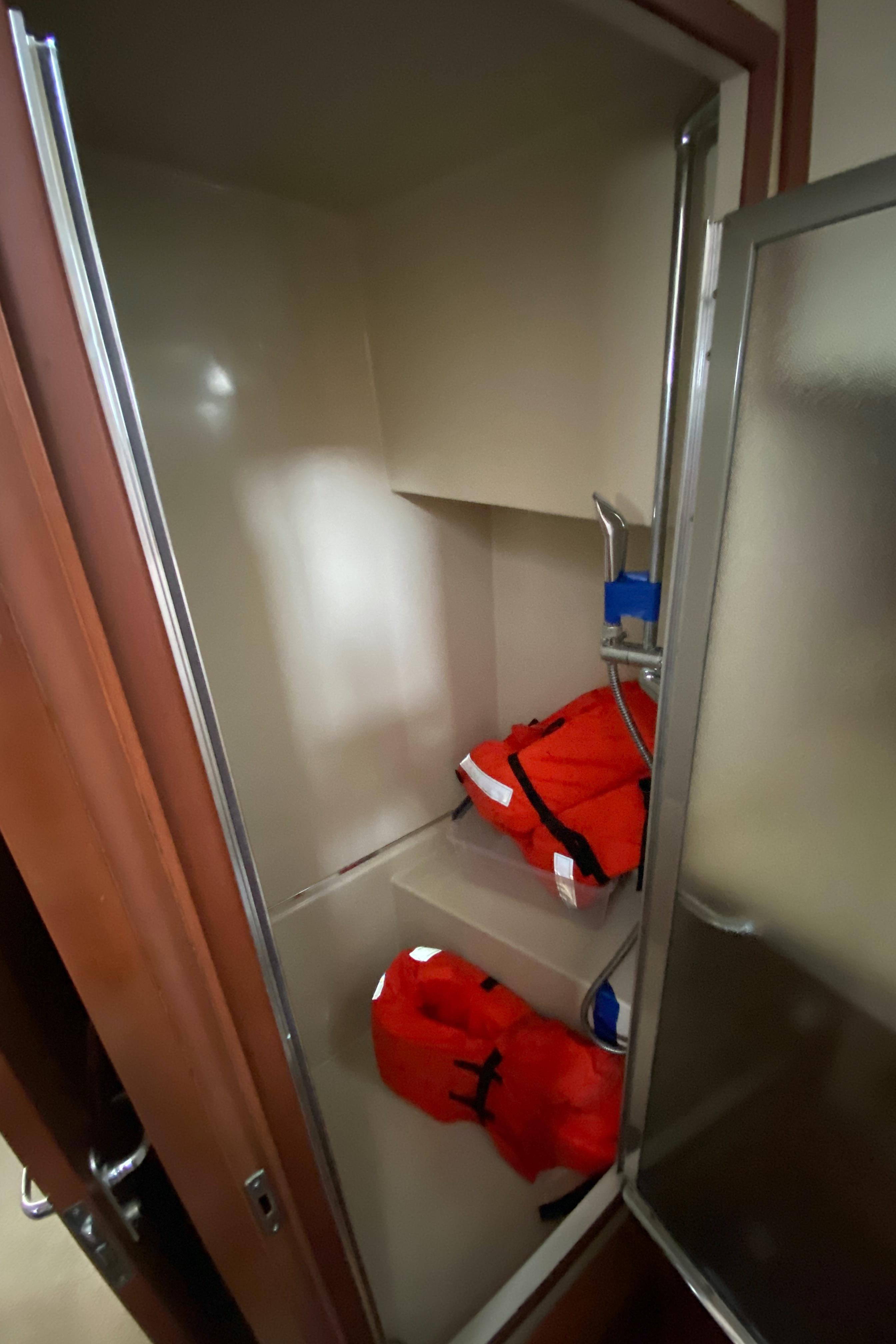

    Shower pan & stall: molded fiberglass

    Shower sump pump: 12VDC

    Counter top: solid surface material, with molded rails

    Sink: oval molded into counter top.

    Faucet; sink: single lever, mixer style

    Faucet; shower: telephone style in separate stall shower

    Mirror: hardwood trim

    Cabinet: medicine

    Light; overhead: one 12VDC

    Light; over mirror: one fluorescent

    Light; in shower stall: one 12VDC

    Receptacles: one, 110VAC

    Portlights: two opening

    Sole: hardwood

Basic Boat Info

  • Price: $ 199,900
  • Boat Name: Raffamuggin II
  • Make: Willard Marine
  • Model: Pilothouse
  • Year: 2001
  • Condition: Used
  • Category: Power
  • Construction: Fiberglass
  • Boat Hull Id: WLD41039A101
  • Has Hull Id: 1

Dimensions

  • Length: 40 ft
  • Length Over All: 40.5 ft
  • Waterline Length: 36.08 ft
  • Beam: 13.67 ft
  • Max Draft: 4.25 ft
  • Cabins Count: 2

Engines

  • Make: Cummins
  • Model:
  • Drive Type:
  • Fuel: diesel
  • Engine Power: 115|horsepower
  • Year: 2001

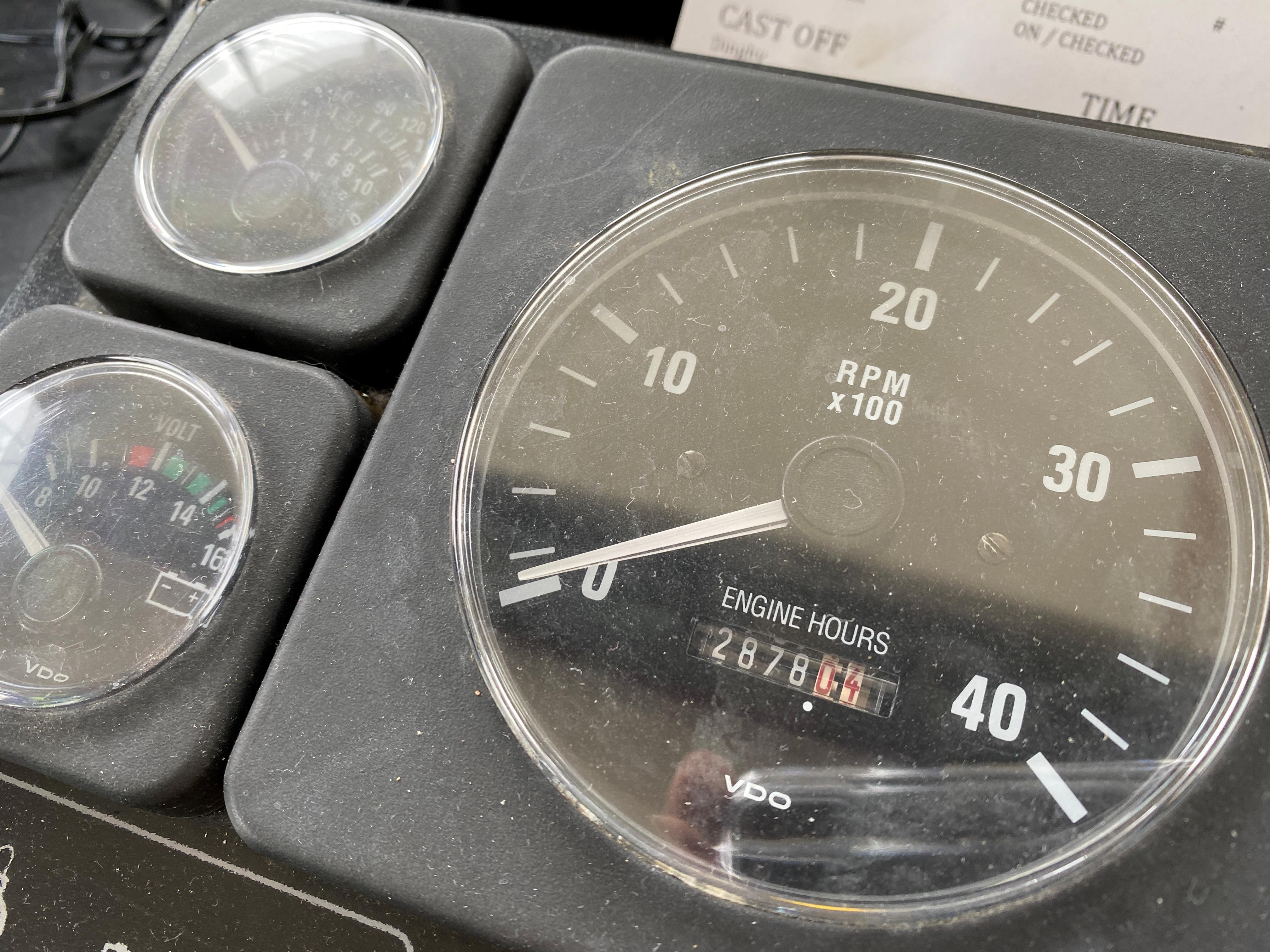

  • Engine Hours: 2878

Tanks

  • Fuel Tanks: 2
  • Fuel Tank Capacity: 600|gallon
  • Fuel Tank Material: Aluminum
  • Water Tanks: 1
  • Water Tank Capacity: Stainless Steel
  • Holding Tank Count: 1

Other

  • Heads Count: 1
  • Boat Class: Trawlers,Pilothouse,Motor Yachts
